4X2 ISUZU GIGA 8000liters water tank fire truck Description:
- ISUZU water tank fire truck also called fire fighting tanker, fire appliance, fire fighting engine, fire-extinguishing water truck, service truck, fire rescue truck, fire engine, fire tender, fire vehicle, fire fighting equipment, fire fighting foam tanker.
- This fire truck is designed primarily for fire fighting operations – to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
- Fire fighting trucks types: Water fire truck, foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
- Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other departments.
- According to the fire agent, there are water tank fire fighting trucks, dry powder fire fighting trucks, water/foam fire fighting trucks.
Advantage:
- 100% custom-made
- ISUZU GIGA heavy-duty Chassis, Durable & Performance.
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- High-performance fire pump and fire cannon
- Water tank and Foam tank capacity can be optional.
- Tanker material: Carbon steel or Stainless steel
- With a complete set of fire fighting Accessories & Equipment, your can put in work immediately.
- Easy operation and easy maintenance.
- FREE training in our factory if you need it.
Specification:
4X2 ISUZU GIGA 8000liters water tank fire truck | ||
General | Vehicle Brand | CHENG LI |
Chassis Brand | ISUZU GIGA | |
Overall Dimension | 8000X2500X3400 mm | |
GVW / Kerb Weight | 18,000kg / 10,800kg | |
Cab | Cab Capacity | 5 persons allowed |
Air Conditioner | Heating/cooling air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | ISUZU | |
Power | 300 HP (225 KW) | |
Displacement | 7290 ml | |
Emission Standard | Euro 5 | |
Chassis | Drive Type | 4X2 (left hand drive) |
Transmission | FAST Manual 8-shift speed levers with 1 reverse | |
Wheelbase/No. of axle | 5600 mm / 2 | |
Tire Specification | 315/80R22.5 | |
Tire Number | 6 tires and 1 spare tire | |
Max Speed | 90 km/h | |
Paint | Metallic paint | |
Superstructure | Tank Capacity | 8,000L water |
Tanker Material | Carbon Steel | |
Fire pump | CB10/40, 40L/S | |
Fire pump location | Center or rear | |
Fire monitor | Water jet distance: ≥45m Foam jet distance: ≥40m | |
Electronic alarm | 1.2 m long | |
Control panel | English or Your language | |
All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual…… | ||
Optional | Back alarm and Camera can be equipped. Standard carbon steel, stainless steel optional. USA or Germany fire pump can be optional |
ISUZU Fire fighting vehicle Bodywork details:
Fire equipment table:
Serial number | name | specification | Quantity | unit | Remarks |
1 | straw | 125×4 meters | 2 | root | Threaded |
2 | Water filter | FLF125 | 1 | Piece | Threaded |
3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
4 | Water trap | JII125/65×2-1.0 | 1 | Piece | Internal button |
5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
8 | Water-retaining cloth | DT-SB | 4 | Piece | Internal button |
9 | Hose hook | 4 | Piece | ||
10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
12 | Suction pipe wrench | FS100 | 2 | Piece | |
13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
15 | Fire extinguisher | 3KG | 1 | With | |
16 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
17 | Rubber hammer | 1 | Piece | ||
18 | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment:
Serial number | name | specification | Quantity | unit | Remarks |
1 | Automatic charging device | 12V | 1 | set | |
2 | Air backrest | 3 | set | ||
3 | Air breathing apparatus | Number of members | set | ||
4 | Hose bridge | rubber | 2 | vice | |
5 | Telescopic ladder | 1 | vice | ||
6 | Hand lift the pump | 1 | station | ||
7 | Breaking tools | 1 | set | ||
8 | Other fire equipment |

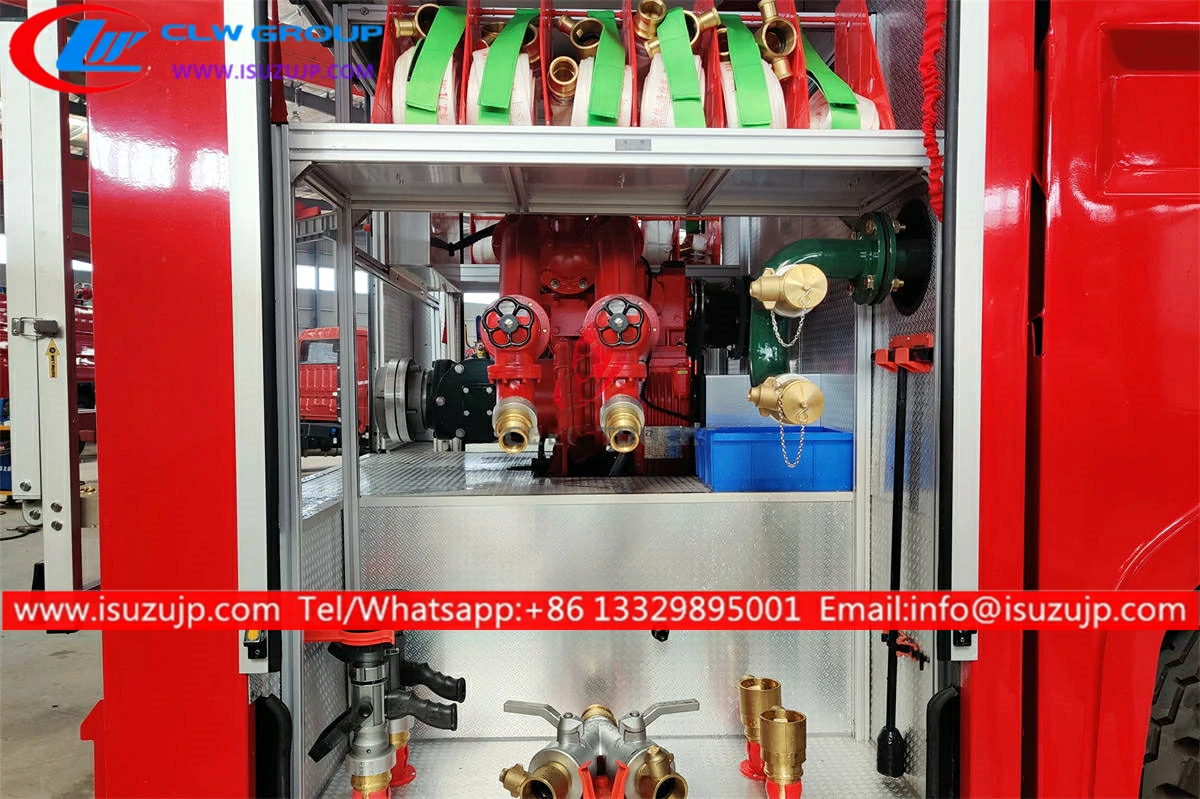

fire fighting engine Parts Picture:
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
