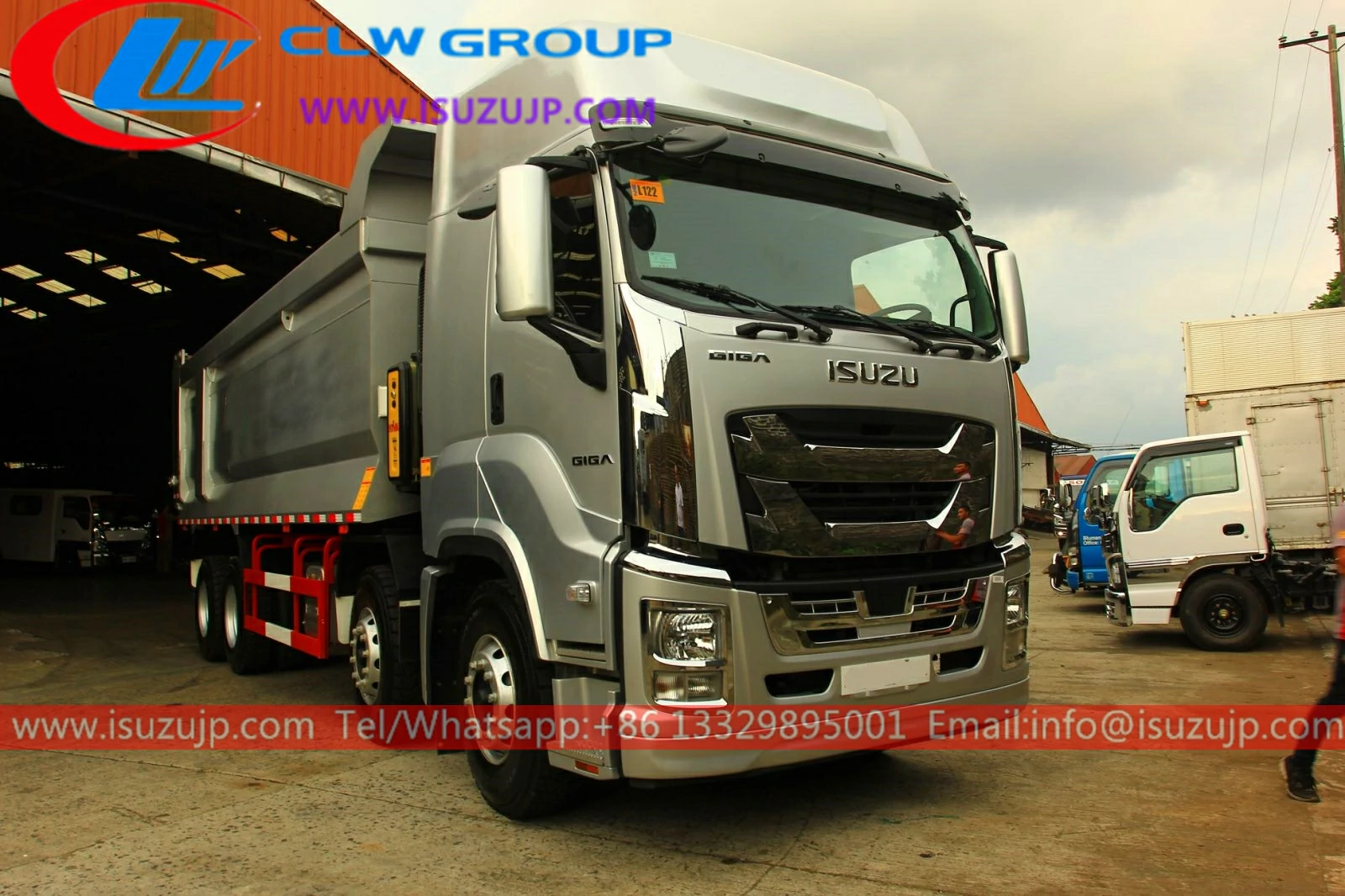

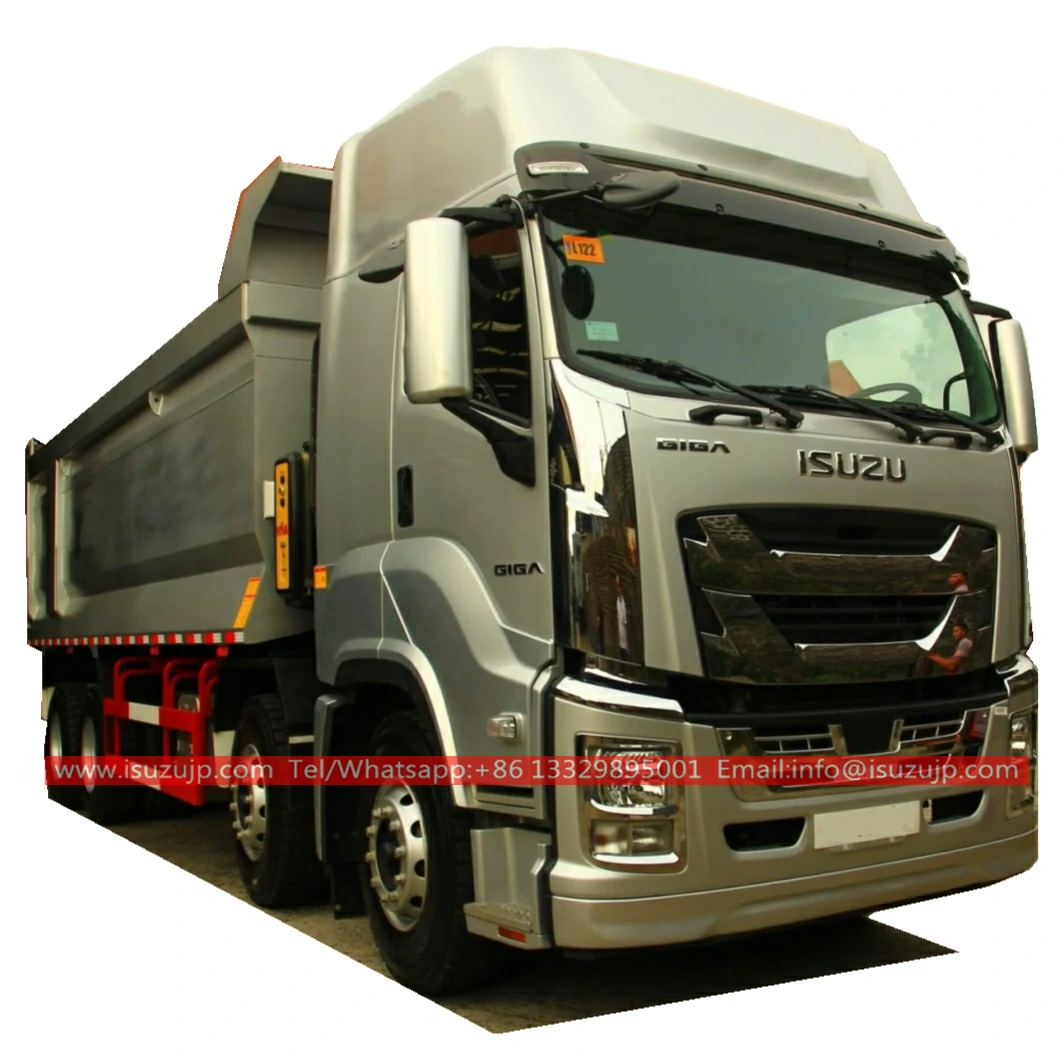

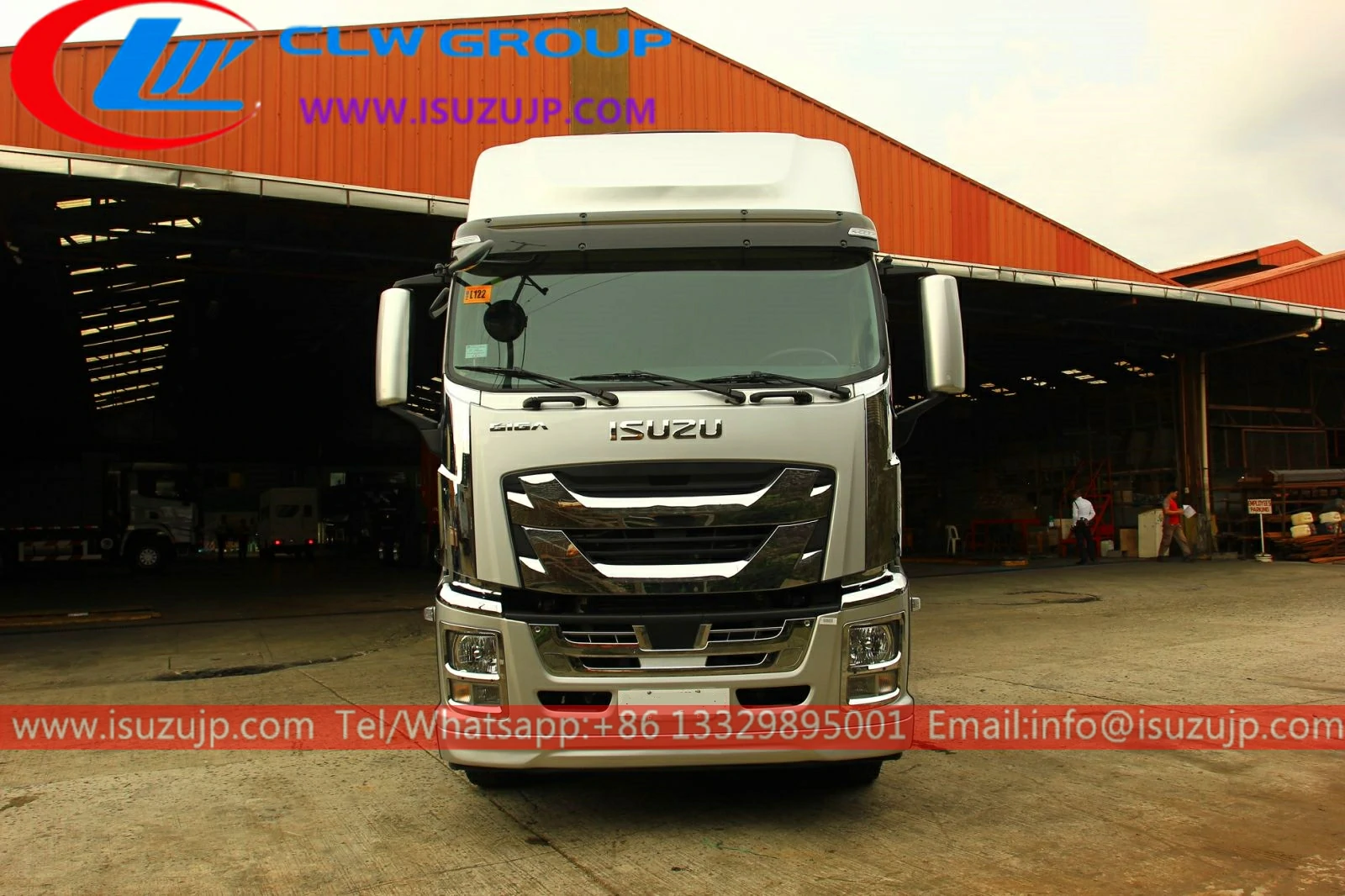

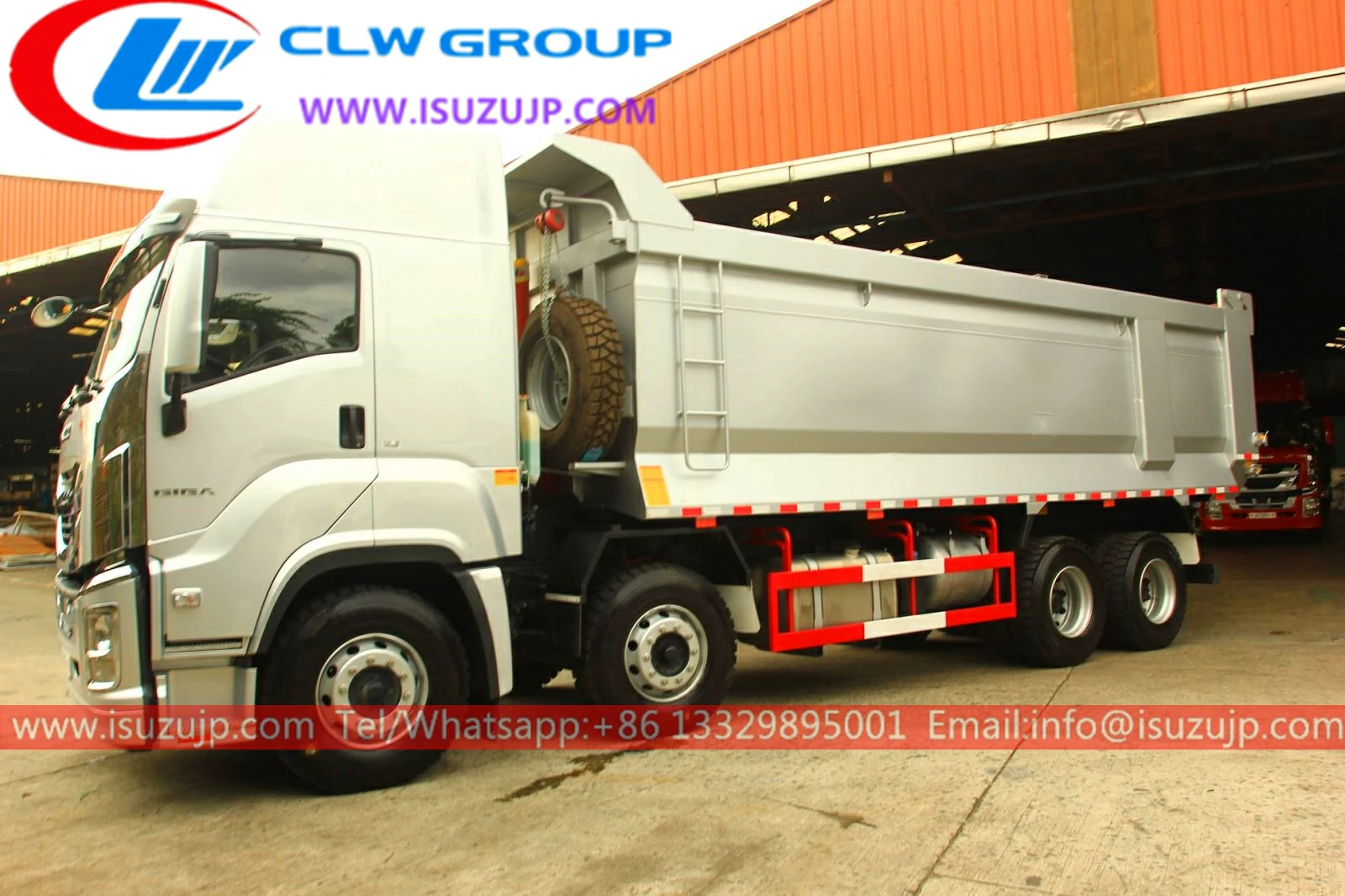

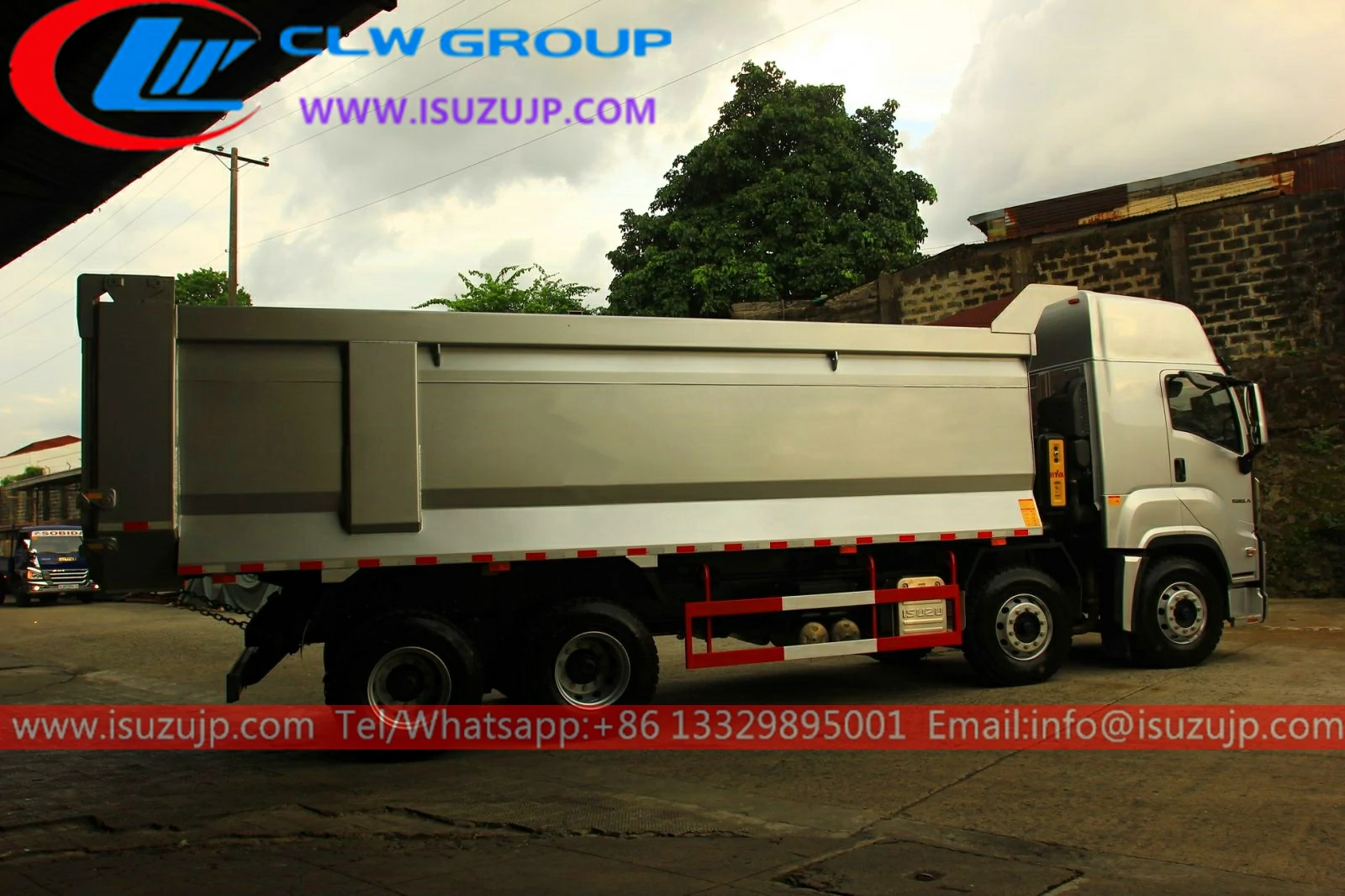

460HP Isuzu GIGA VC61 8×4 biggest dump gravel truck Description:
- Isuzu biggest dump gravel truck is also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry, construction sand rock dump truck.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at the side with hydraulic pistons to lift the side.
Advantage:
- 8X4 ISUZU GIGA chassis, perfect performance
- 6HK1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Pay loading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Various types of tipper bodies are available.
- High strength box body
- Excellent Chinese brand hydraulic piston
- The strong, durable, perfect performance
Specification:
Vehicle Model(460HP Isuzu GIGA VC61 8×4 biggest dump gravel truck) | CLW5400GXFW2VCHY | |
Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 10200x2550x3800mm |
Wheelbase: | 1850+4575+1370mm | |
Front Wheel Distance: | 2060/2060mm | |
Rear Wheel Distance: | 1855/1855mm | |
Front/Rear Suspension | 1370/2120mm | |
Weights and Capacities | Curb Weight: | 10450kg |
GVW: | 40000kg | |
Axle Loads: | 7000/7000/26000 | |
Engine | Engine Model: | 6WG1-TCG51 |
Max output: | 338Kw | |
Displacement: | 15681ml | |
Horsepower: | 460Ps | |
Exhaust Gas Treatment Technology: | SCR | |
Cabin | Number of Seats: | 2 |
Cabin Type | Standard Roof One Bed | |
Chassis | Drive Type: | 8×4 |
Tires: | 13(Including Spare Tire) | |
Fuel tank | Capacity | 400L |
Configurations | 1 | Power Steering System |
2 | Air Conditioning | |
3 | ABS | |
4 | Tubeless Tire | |
5 | Retro-Reflective Marking | |
6 | Free Maintenance Battery | |
7 | Central Lock | |
8 | Power Window | |
9 | Driving Data Recorder | |
10 | Widened Bumper | |
Tops Parameters | Dump Body Parameter | 7300x2300x1800mm |
Hydraulic Cylinder | HYVA | |
Thickness of the dump body | Bottom 8mm, Side 6mm |
ISUZU Dumper truck Structure:
ISUZU tipper truck parts tools and instructions:
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
construction sand rock transport truck shipping:
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely
Front lifting dump truck bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
