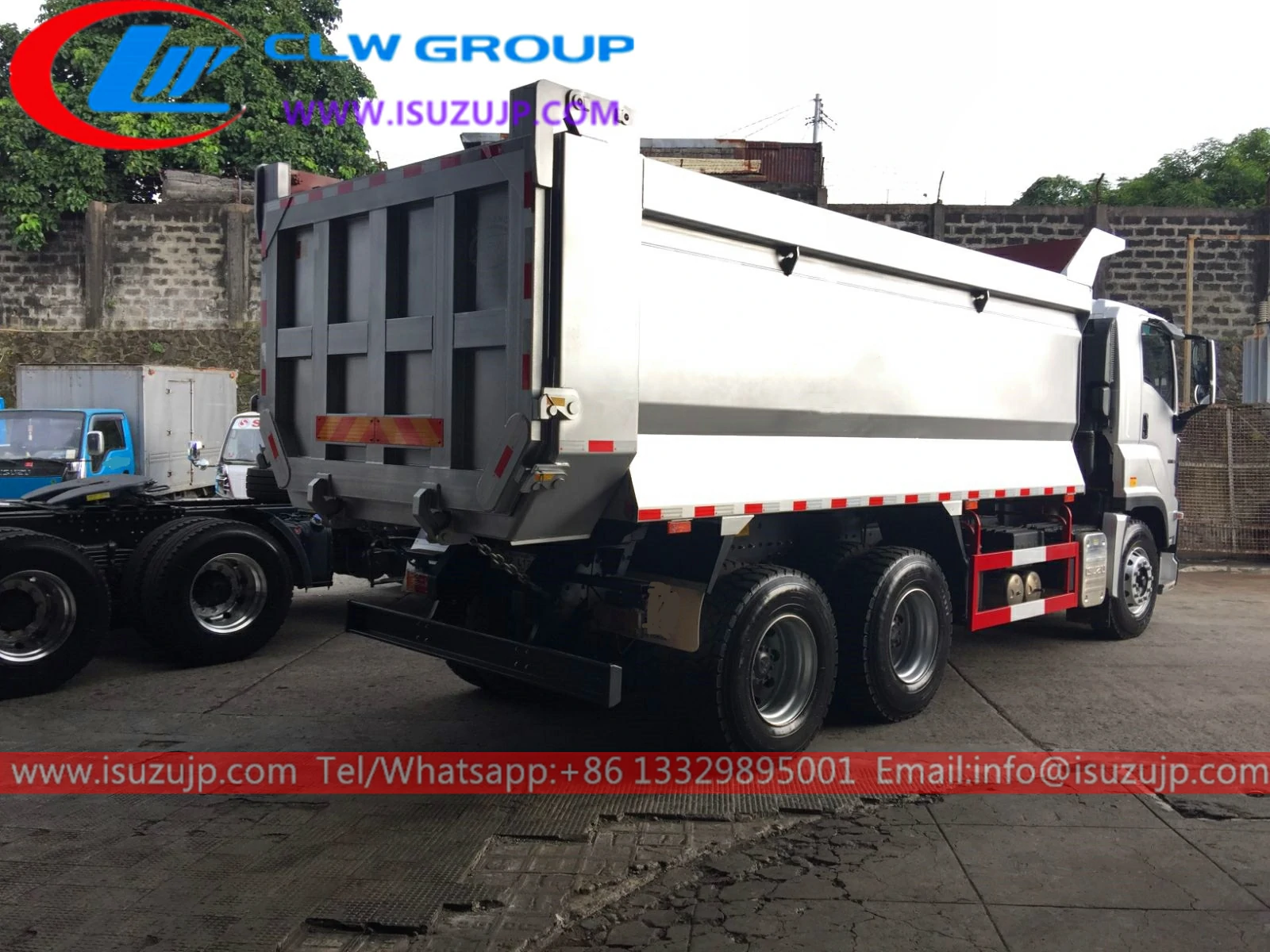

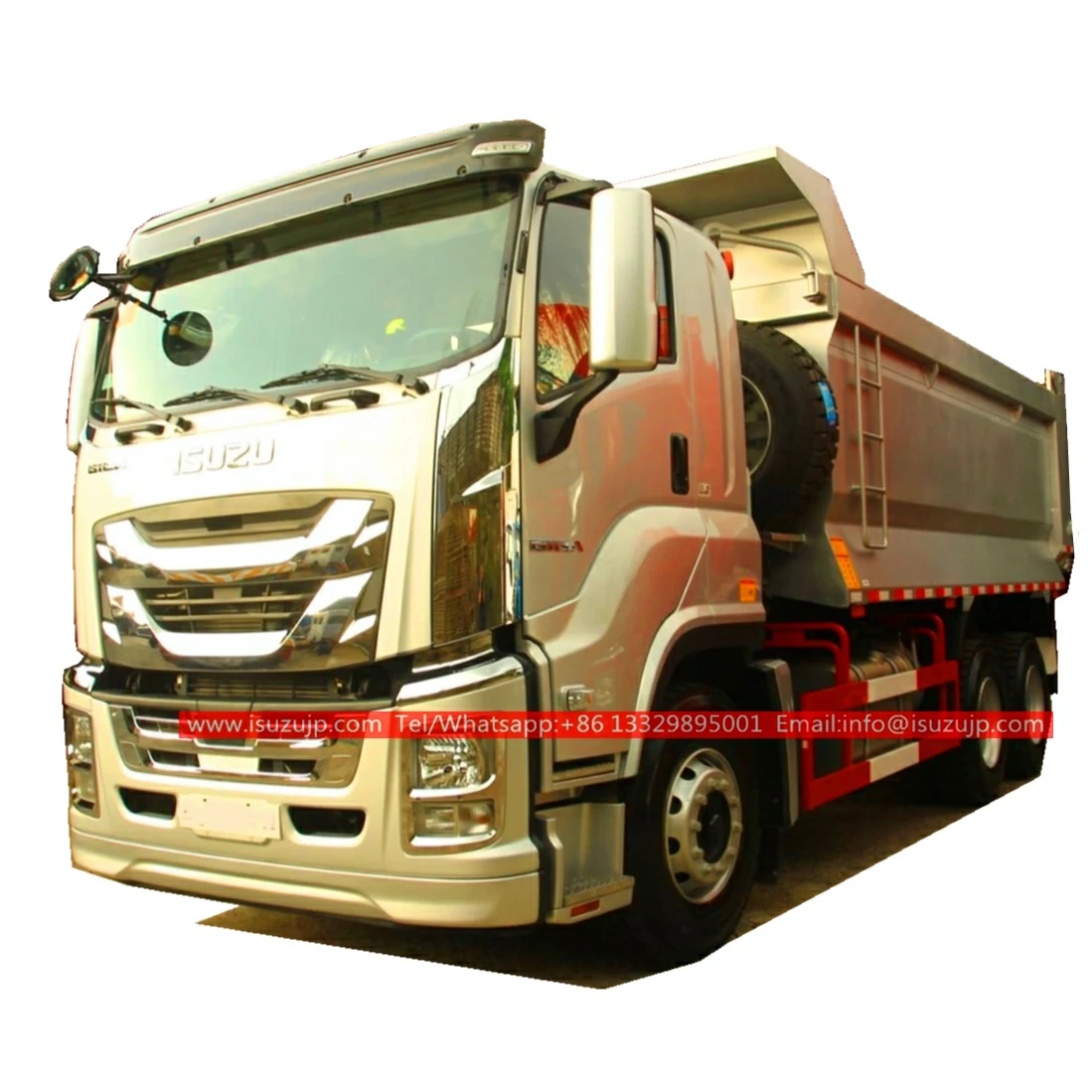

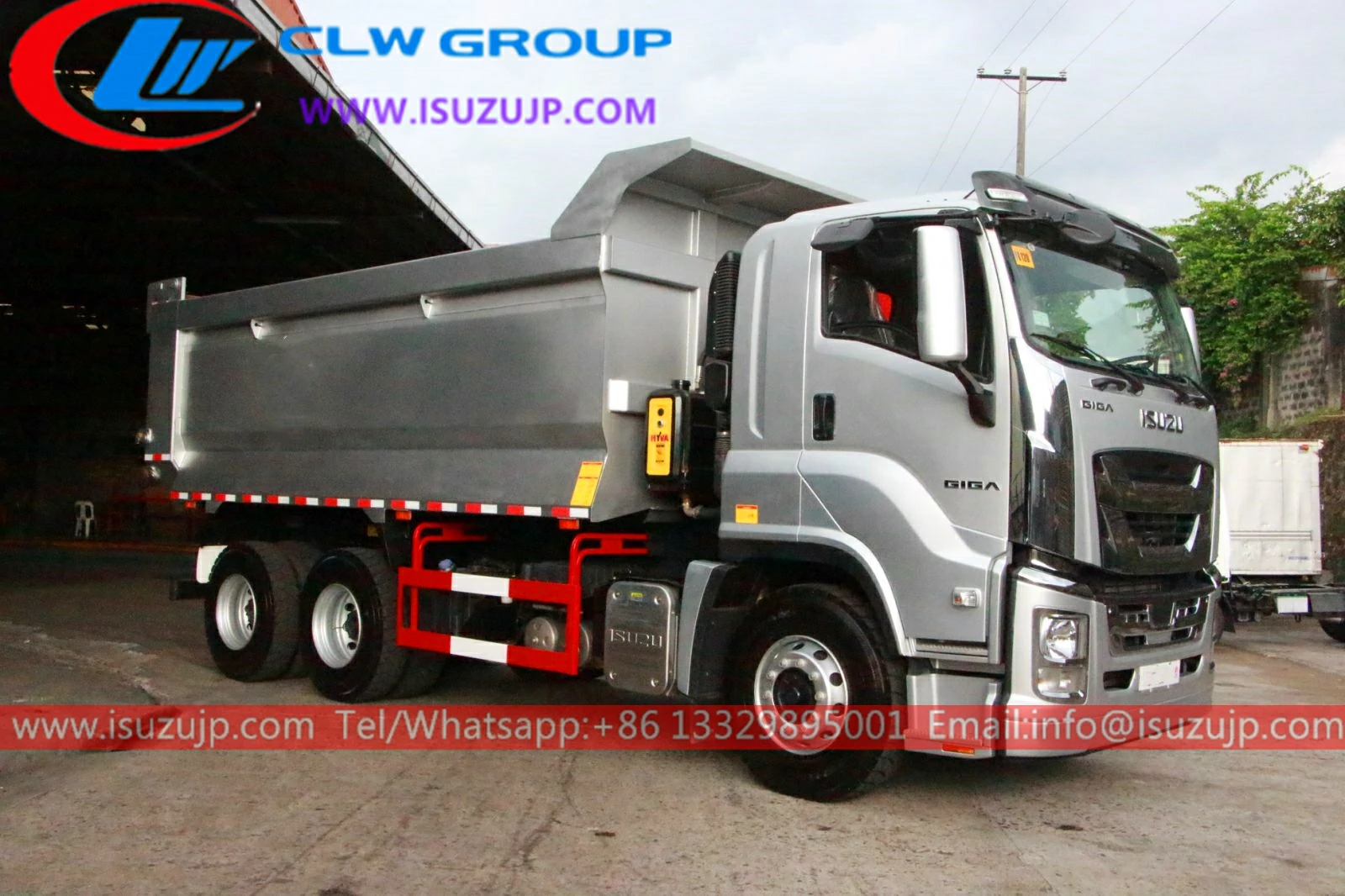

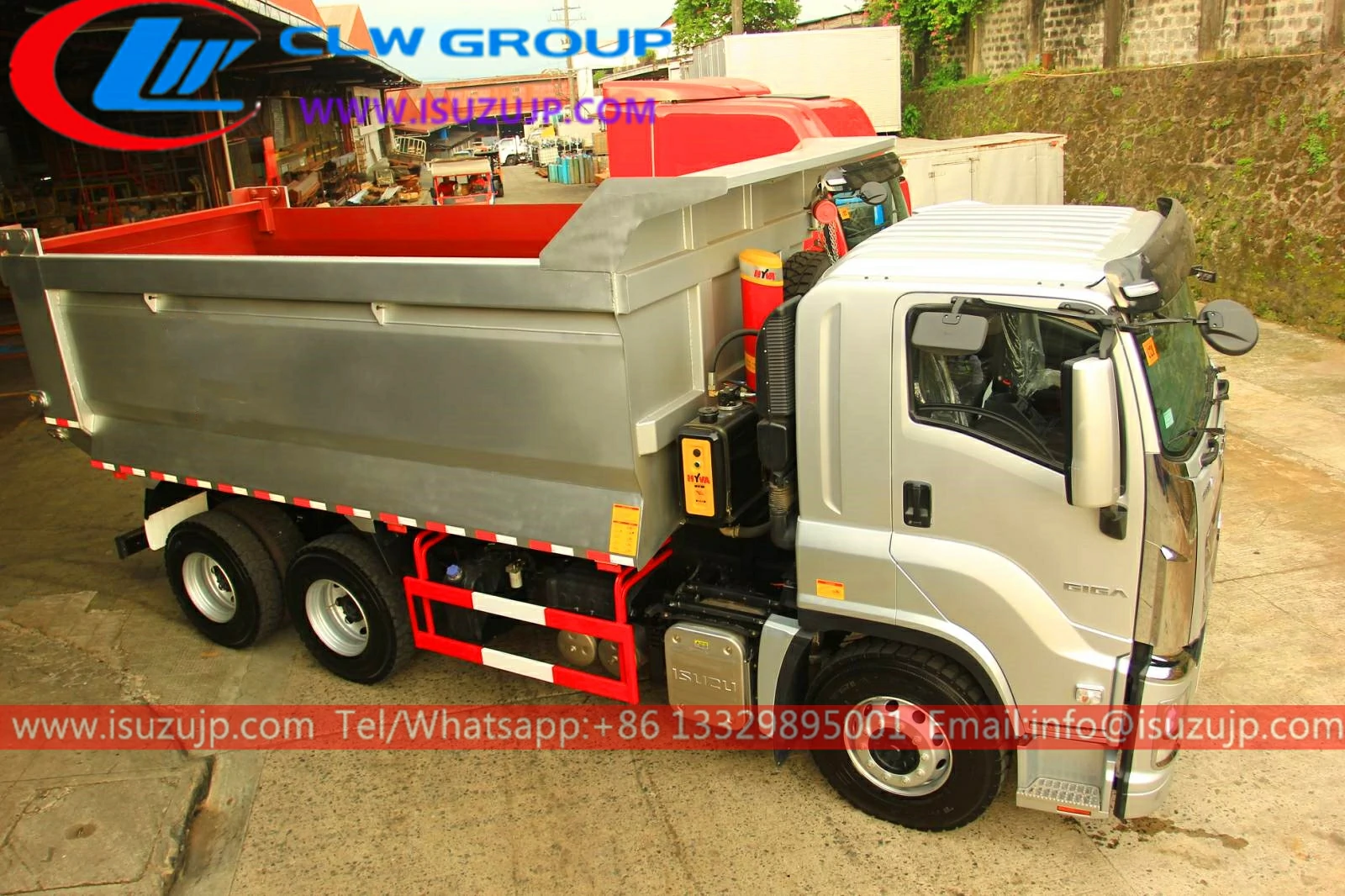

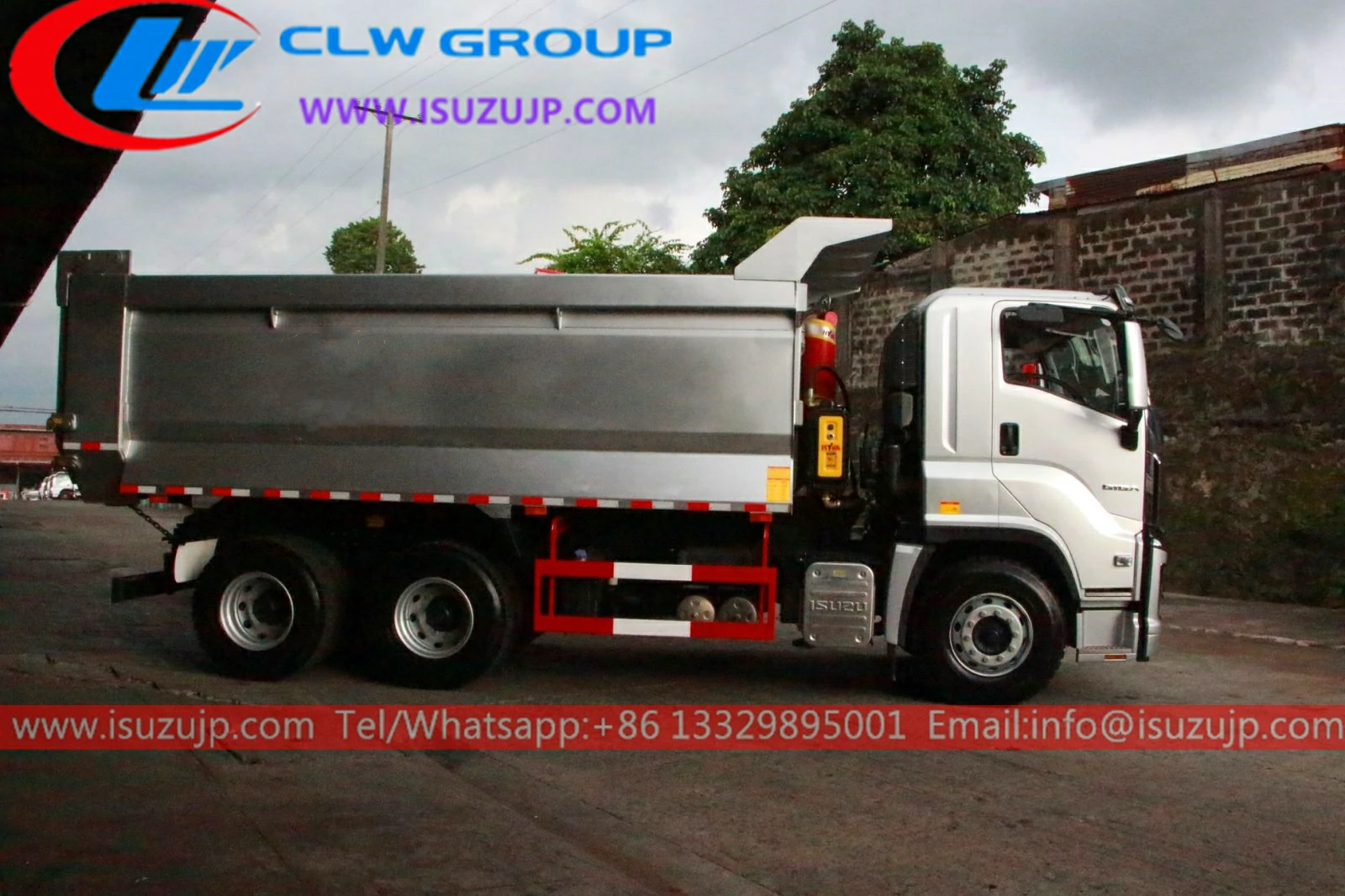

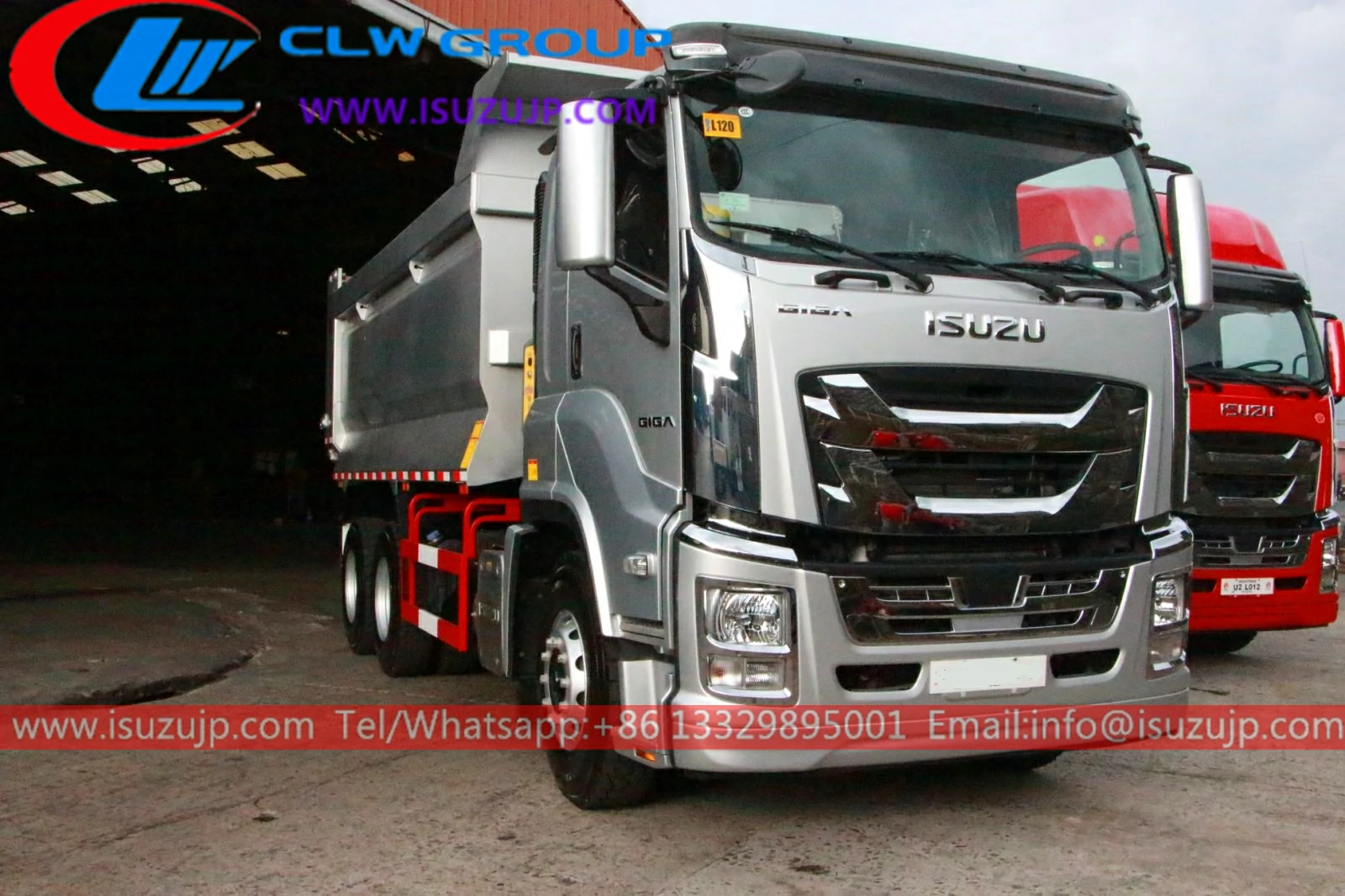

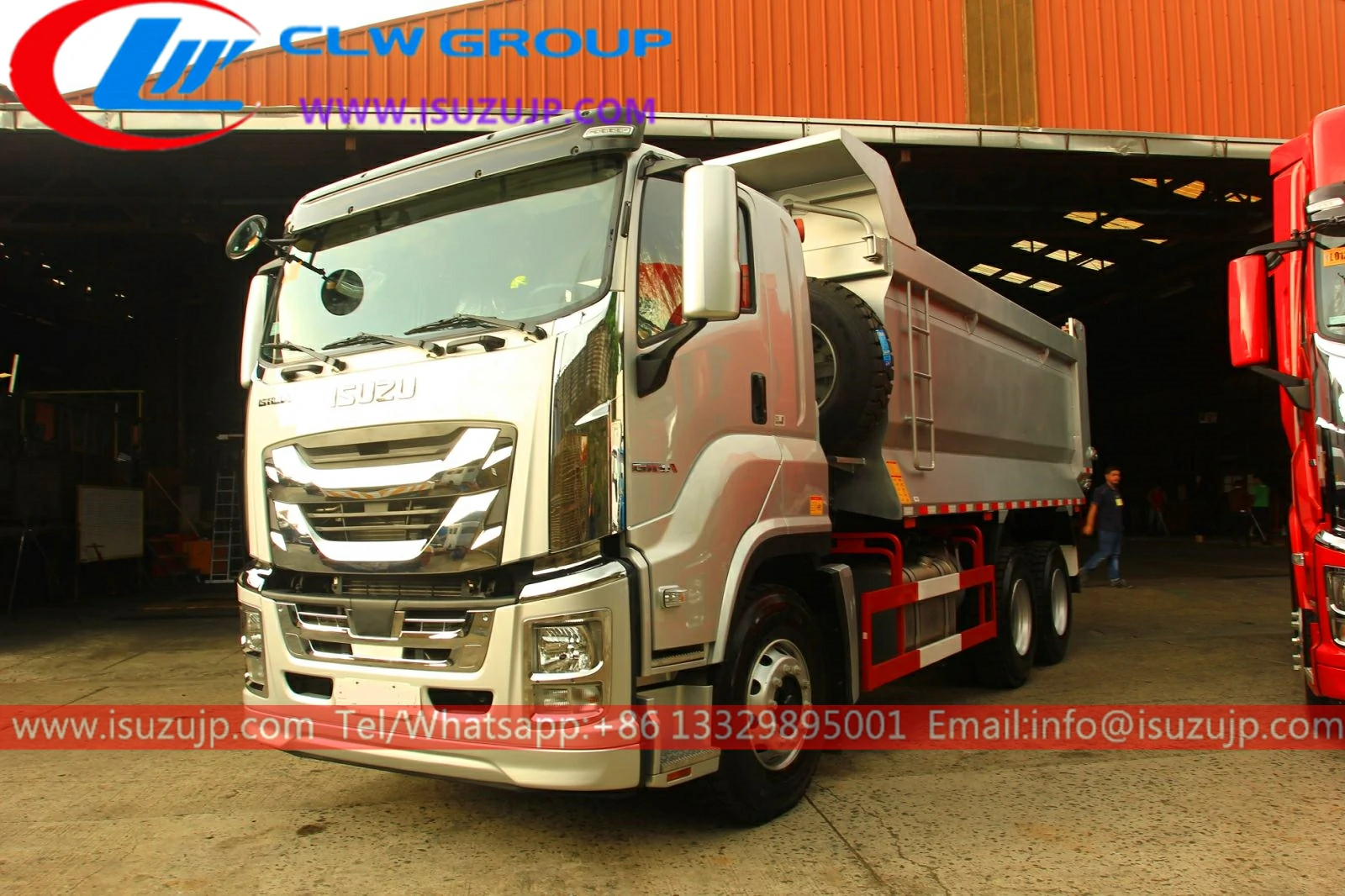

380HP Isuzu GIGA VC61 tri axle mining quarry truck Description:
- Isuzu 25t tri axle mining quarry truck also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry, construction sand rock dump truck.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at side with hydraulic pistons to lift the side.
Advantage:
- ISUZU GIGA chassis, perfect performance
- 6U engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Pay loading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Virious types of tipper body are available.
- High strength box body
- Excellent Chinese brand hydraulic piston
- The strong, durable, perfect performance
Specification:
| Vehicle Model(380HP Isuzu GIGA VC61 tri axle quarry mining truck) | CLW1250U1QDZY | |
| Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 8550x2500x3450mm |
| Wheelbase: | 3985+1370mm | |
| Front Wheel Distance: | 2065mm | |
| Rear Wheel Distance: | 1855/1855mm | |
| Front/Rear Suspension | 1370/1740mm | |
| Weights and Capacities | Curb Weight: | 9000kg |
| GVW: | 25000kg | |
| Axle Loads: | 7000/18000kg(Two-Axis Group) | |
| Engine | Engine Model: | 6UZ1-TCG50 |
| Max output: | 279kw | |
| Displacement: | 9839ml | |
| Horsepower: | 380ps | |
| Exhaust Gas Treatment Technology： | SCR | |
| Cabin | Number of Seats: | 2 |
| Cabin type | Standard Roof One Bed | |
| Chassis | Drive Type: | 6×4 |
| Tires: | 11(Including Spare Tire） | |
| Fuel tank | Capacity | 400L |
| Configurations | 1 | Power Steering System |
| 2 | Air Conditioning | |
| 3 | ABS | |
| 4 | Tubeless Tire | |
| 5 | Retro-Reflective Marking | |
| 6 | Free Maintenance Battery | |
| 7 | Central Lock | |
| 8 | Power Window | |
| 9 | Driving Data Recorder | |
| 10 | Widened Bumper | |
| 11 | Aluminum Alloy Gas Tank | |
| 12 | Front Chrome Kit | |
| Tops Parameters | Dump Body Parameter | 5600x2300x1500mm |
| Hydraulic Cylinder | HYVA137 Front lifting | |
| Thickness of the dump body | Bottom 8mm, Side 6mm | |
ISUZU Dumper truck Structure:
ISUZU tipper truck parts tools and instructions:
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
construction sand rock transport truck shipping：
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely
Front lifting dump truck bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
