Application:

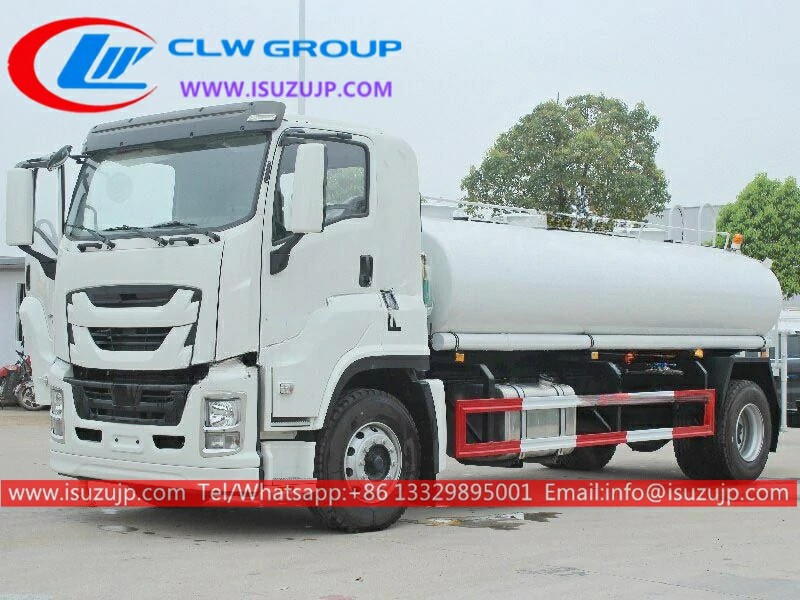

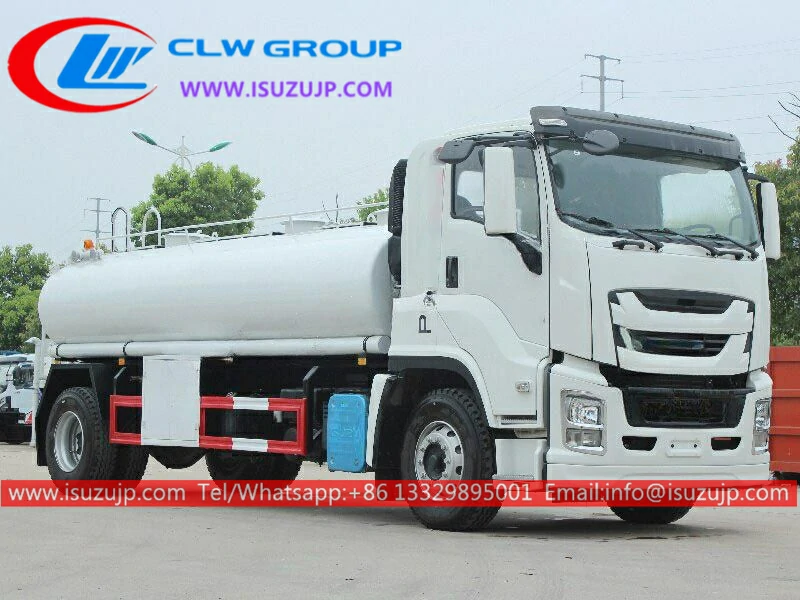

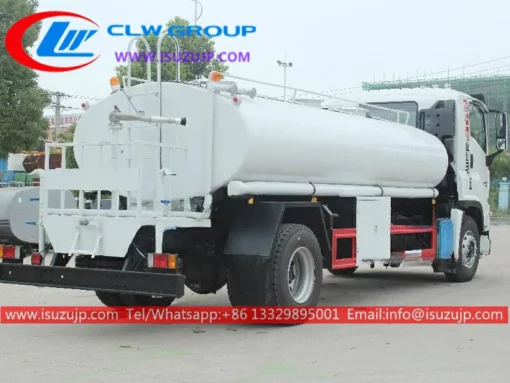

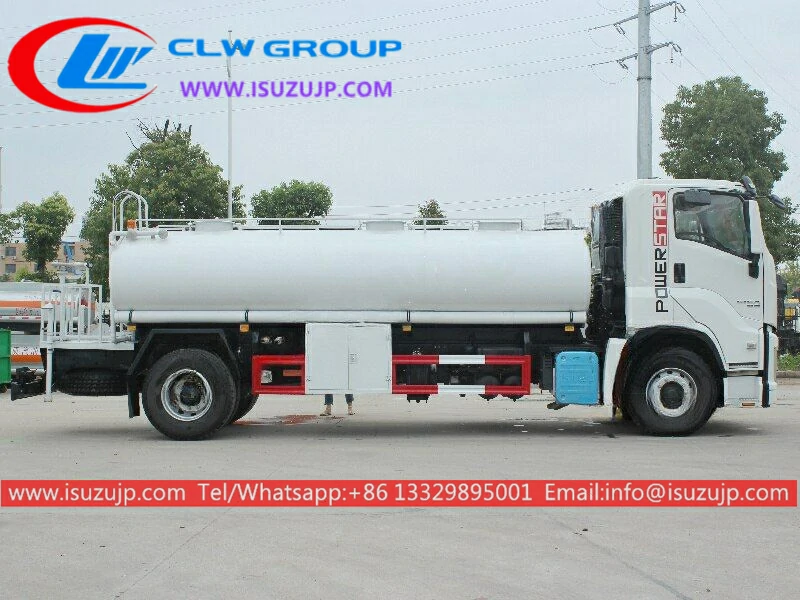

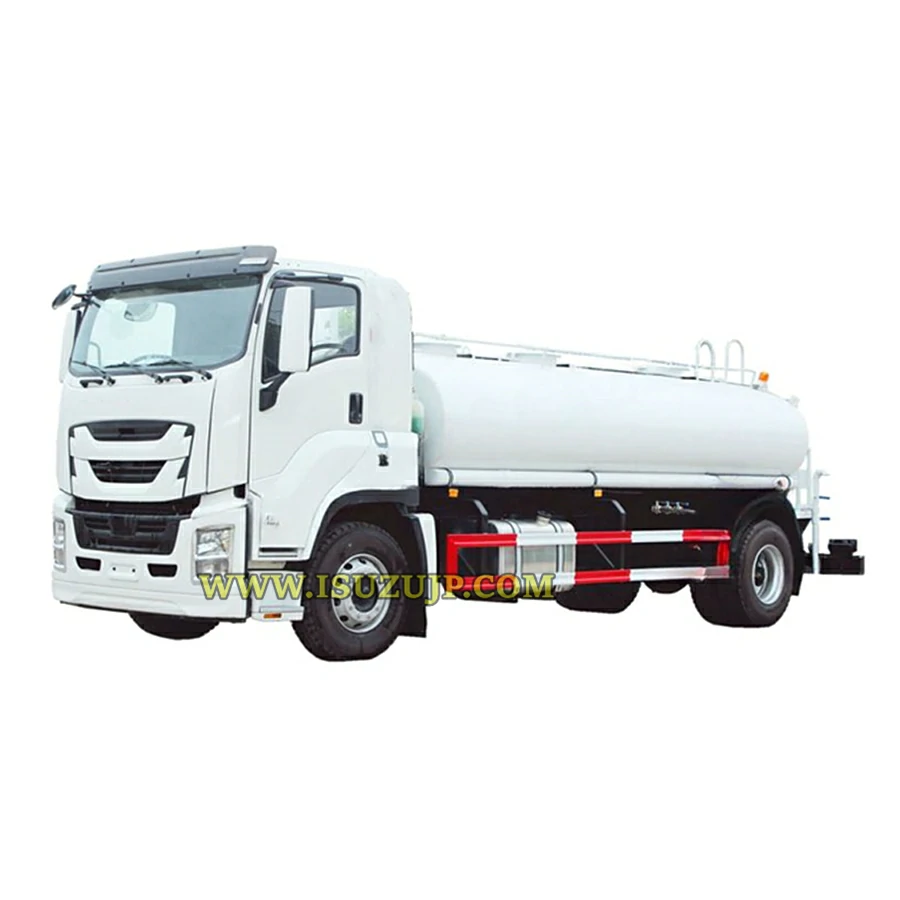

- 2023 New FVR 240HP 12tons service drinking water truck for drinking water also called Potable Water Service Truck, Potable water bowser, Stainless steel drinking water truck are used to deliver potable drinking water .

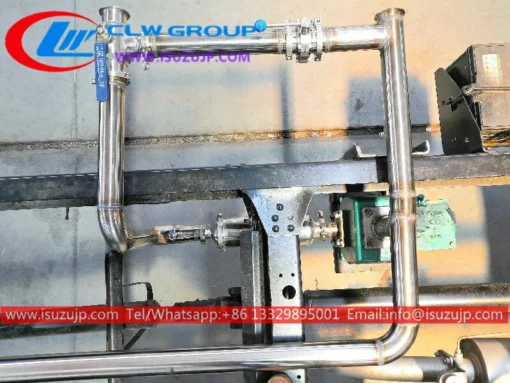

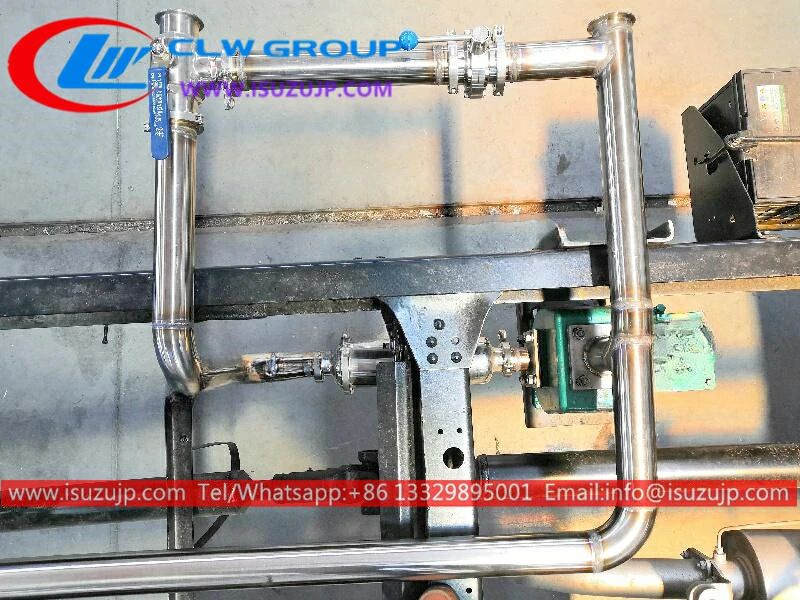

- Our tanks transport water that is dispensed through a pumping system either through a hose reel for delivery or through a series of spray heads and nozzles to spray the water in different directions.
- The water tanker volume can be from 2,000liters to 35,000liters
Advantage:
- 4X2 ISUZU GIGA chassis, perfect performance
- 100% custom-made
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- stainless steel Water pump super powerful, efficient pump in and out
- Stainless steel pipes, longer service life
- Easy operation & Easy maintenance
- 2,000L to 35,000L available
- Short delivery time 7~30 days
- 15 years spare parts & Technical support
Specification:
Manufacturer | Chengli Trucks | |
Item | 2023 New FVR 240HP 12tons service drinking water truck for sale in Saudi Arabia | |
Brand | ISUZU | |
Model | CLW5020GSSD6 | |
Production Time | 25 days | |
Truck Chassis | ||
Specification | Overall dimensions | 8670*2500*3055 mm |
Gross weight | 18,000 kg | |
Kerb weight | 9,200 kg | |
Wheelbase | 5,600 mm | |
Driving type | 4*2 | |
Chassis model | QINGLING GIGA Heavy-duty | |
Tire size | 315/80R22.5 | |
Passengers in cab | 3 | |
Engine | Engine model | 6UZ1 / 6WG1 |
Type of fuel | Diesel | |
Power | 350HP / 380HP / 420HP / 460HP | |
Gearbox | FAST 12-shift gearbox | |
Upper Structure | ||
Water Tanker performance | Tank Capacity | 12,000L |

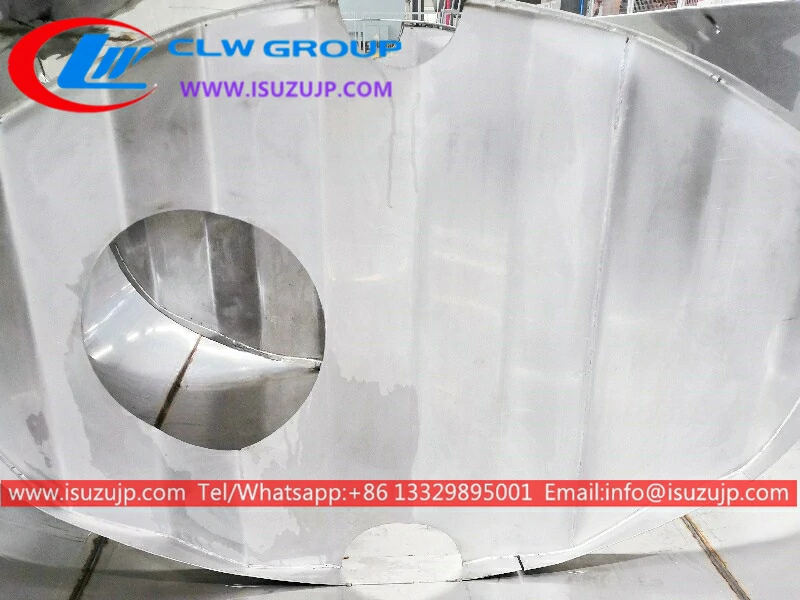

Tank Material | 4mm food grade stainless steel 304-2B material | |
Water Pump | Top Chinese WEILONG brand | |
65QZB-40/50 model stainless steel water pump, flow rate 40m³/h | ||
Suction Time | 290 s | |
Tank Shape | Ellipse as standard | |
Rear Platform | Customized rear platform and Water Canon | |
Function | Standard Pump In and Pump Out | |
Discharge Valve | Customized 3 discharge valves with independent switch | |
Control Panel | English | |
Discharging system | Gravity discharge or pump out from tank body. | |
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |
Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps… | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Stainless steel tank, Aluminum alloy tank 2, Wider platform and Fire Cannon 3, Electricity controlled separately sprinkler 4, Spreading salt water Snow-melting agent |
Standard configuration:
Optional configuration:
Technical training support:
Truck Tools:
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Export Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Truck shipping:
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
