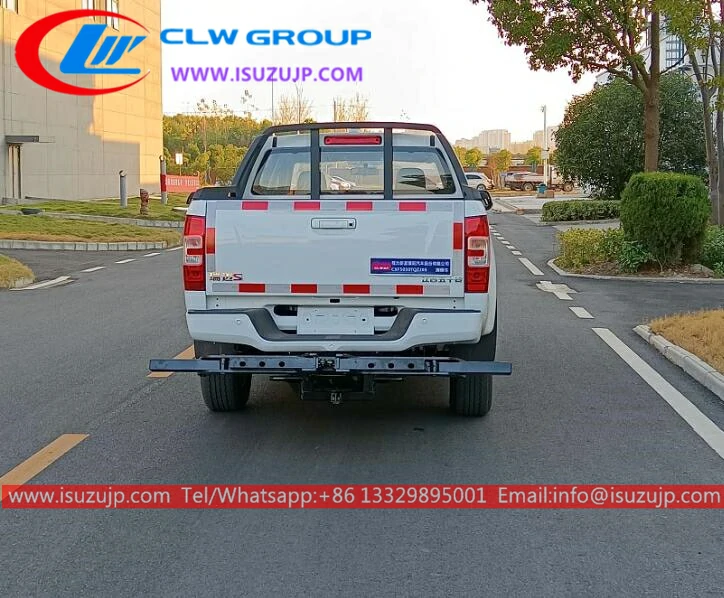

JIM mini wrecker wheel lift Georgia

JIM mini wrecker wheel lift Georgia
JIM mini wrecker wheel lift Georgia
JIM mini wrecker wheel lift Georgia

【Technical parameters of the vehicle】

product name

CXF5030TQZJX6 wrecker wheel lift

Total mass (kg)

2815

Tank volume (m3)

Rated mass (kg)

Dimensions (mm)

5780X1860X1785

Curb weight (kg)

2185

Cargo size (mm)

xx

Number of occupants in the cab (person)

2

Maximum load of saddle (kg)

Approach angle/Departure angle (°)

24/20

Front suspension/rear suspension(mm)

925/1760

Axle load(kg)

1220/1595

Maximum speed (km/h)

170

Remark:

Remarks: The car is used for road clearance; the main special devices are towing devices and tool boxes; lifting weight (kg): 500; optional with the chassis

Chrome radiator grille, chrome front bumper trim, chrome exterior mirrors, side pedals, optional shark fin antenna; ABS system model/manufacturer

: APG3550500G/Zhejiang Asia-Pacific Electromechanical Co., Ltd.; the maximum net power of the engine JE4D25Q6B is 108

KW; The car can be equipped with ETC on-board device.

【Chassis technical parameters】

Chassis model

JXW1033CSGB Vehicle Jiangxi Isuzu Motors Co., Ltd.

Chassis name

Utility Truck Chassis

brand name

Jiangxi Isuzu

manufacturer

Jiangxi Isuzu Motors Co., Ltd.

number of axes

2

Number of tires

4

Wheelbase(mm)

3095,3380

Tire specifications

245/70R16

Number of leaf springs

-/5

Front track(mm)

1570

Fuel type

diesel fuel

Rear Track(mm)

1570

Emissions according to standards

GB18352.6-2016 National VI

engine model

engine manufacturer

engine capacity

engine power

JE4D25Q6B

Jiangxi Isuzu Engine Co., Ltd.

2499

110
