[Technical parameters of the vehicle] | |||||

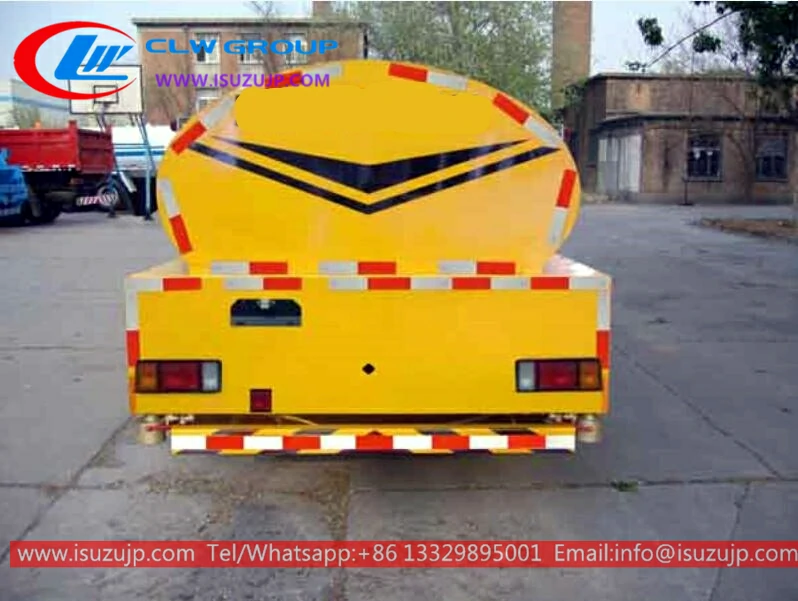

product name | BSZ5105GPSC4T038 small water truck | ||||
Total mass (kg) | 10000 | Tank volume (m3) | 5.7 | ||
Rated mass (kg) | 5500,5200 | Dimensions (mm) | 7375X2175X2330 | ||
Curb weight (kg) | 4305,4605 | Cargo compartment size (mm) | XX | ||
The number of passengers in the cab (person) | 3 | Maximum load of saddle (kg) | |||
Approach angle/departure angle (°) | 21/11 | Front suspension/rear suspension (mm) | 1110/2450 | ||
Axle load (kg) | 3350/6650 | Maximum speed (km/h) | 110 | ||
Remark: | Remarks: The effective volume of the tank: 5.7 cubic meters, the transportation density is 1000 kg/cubic meter of water, the overall dimensions of the tank (length×width×height) (mm) 4500×1660×1100, the effective volume of the tank corresponding to the sprayer is optional: 5.4 cubic meters, corresponding to The tank size is 4000×1660×1100mm, the corresponding curb weight is 4605, and the corresponding load weight is 5200. The protective device material is Q235, the side protection is an integral skirt, and the rear protection is bolted to the longitudinal beam, and the protective section size is 50×1 00mm, the rear protective ground height is 440mm. | ||||
【Chassis technical parameters】 | |||||
Chassis model | QL11009KARY | Chassis name | Truck chassis | ||
Trade name | Isuzu | manufacturer | Qingling Motors Co., Ltd. | ||
Number of axes | 2 | Number of tires | 6 | ||
Wheelbase (mm) | 3815 | ||||
Tire specifications | 235/75R17.5-14PR, 8.25-20-14PR, 8.25R20-14PR | ||||
Number of leaf spring | 8/10+6 | Front track (mm) | 1680 | ||
Fuel type | diesel fuel | Rear track (mm) | 1650 | ||
Emission standard | GB17691-2005 (National IV), GB3847-2005 | ||||
engine model | Engine manufacturer | engine capacity | Engine power | ||
4HK1-TCG40 | Qingling Isuzu (Chongqing) Engine Co., Ltd. | 5193 | 139 | ||
