【Technical parameters of the vehicle】 | |||||

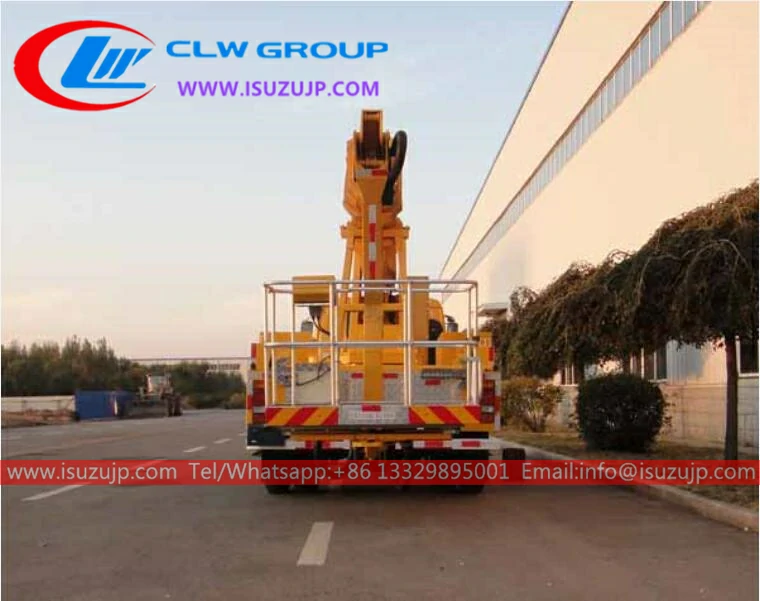

product name | KFM5121JGK410H Isuzu FSR aerial work truck Algeria | ||||
Total mass(kg) | 12495 | Tank volume(m3) | |||
Rated mass(kg) | Dimensions(mm) | 8950X2480X3450 | |||
Curbweight (kg) | 12300 | Cargo size(mm) | XX | ||
Number of occupants in the cab(person) | 3 | Maximum load of saddle(kg) | |||
Approach angle/Departure angle (°) | 26/10 | Front suspension/rear suspension(mm) | 1335/1465 | ||
Axle load(kg) | 4180/8315 | Maximum speed(km/h) | 90 | ||
Remark: | Remarks:1. Rear extension: 1650mm.2, side protection material is Q235A, bolted connection, rear protection material is Q235A, welding Connection. Sectional size of rear guardrail: 100mm×30mm, ground clearance 500mm. 3, narrow front bumper can be optional with the chassis; .4, ABS model: APG3550500H1, manufacturer: Zhejiang Asia Pacific Electromechanical Co., Ltd. | ||||
【Chassis technical parameters】 | |||||
Chassis model | QL11409MFR | Chassis name | truck chassis | ||
brand name | Isuzu | manufacturer | Qingling Motor Co., Ltd. | ||
number of axes | 2 | Number of tires | 6 | ||
Wheelbase(mm) | 4500 | ||||
Tire specifications | 9.00-20,9.00R20 | ||||
Number of leaf springs | 7/7+5 | Front track(mm) | 1960 | ||
Fuel type | diesel fuel | Rear Track(mm) | 1855 | ||
Emissions according to standards | GB17691-2005 (National IV), GB3847-2005 | ||||
engine model | engine manufacturer | engine capacity | engine power | ||
4HK1-TCG40 | 5193 | 139 | |||
