[Technical parameters of the vehicle] | |||||

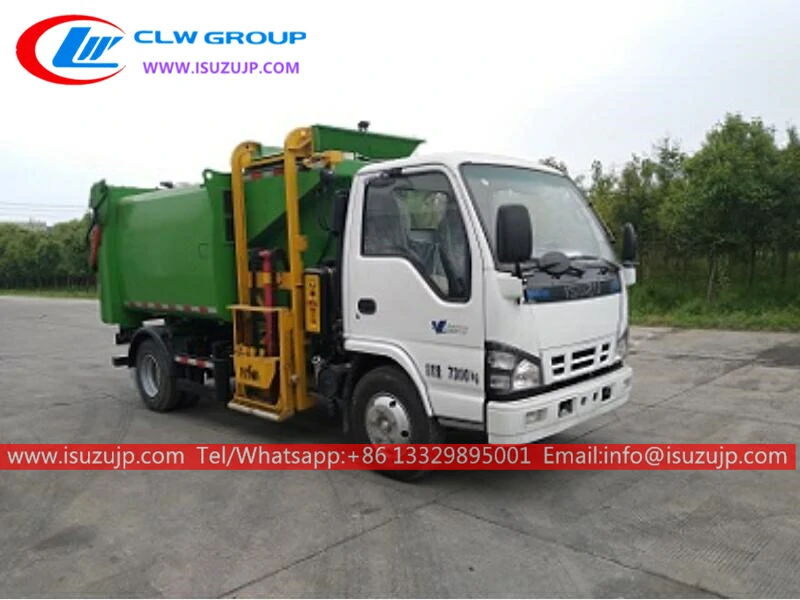

product name | SYB5071TCAQL6 waste connections truck | ||||
Total mass (kg) | 7300 | Tank volume (m3) | |||
Rated mass (kg) | 2520 | Dimensions (mm) | 5680X2010X2680 | ||
Curb weight (kg) | 4650 | Cargo compartment size (mm) | XX | ||
The number of passengers in the cab (person) | 2 | Maximum load of saddle (kg) | |||
Approach angle/departure angle (°) | 24/17,24/18 | Front suspension/rear suspension (mm) | 1015/1305 | ||
Axle load (kg) | 2580/4720 | Maximum speed (km/h) | 95 | ||
Remark: | Remarks: 1. ABS and its controller model/manufacturer: APG3550500A/Zhejiang Asia-Pacific Mechanical and Electrical Co., Ltd.; C M4YL/Guangzhou Ruili Komi Automotive Electronics Co., Ltd.; CM4XL-4S/4M/Guangzhou Ruili Komi Automotive Electronics Co., Ltd. Limited company; 2. The material of the side guard crossbar is Q235A, bolted, and the ground height is 340mm; the rear lower guard crossbar The material is Q235, bolt connection, cross-section size 100mm×100mm, ground height 400mm; 3. Optional rear lower part Protective device, the beam material of the optional rear lower protective device is Q235A, welded connection, the cross-sectional size is φ108×5.0, and the The ground height is 400mm; 4. Optional installation and description: optional water tank, the appearance of the cab, the installation position of the external identification plate, 5. A special vehicle for collecting and transporting domestic waste and food waste (swill) through the side feeding mechanism and hydraulic system; | ||||
【Chassis technical parameters】 | |||||
Chassis model | QL1070BUHACY | Chassis name | Truck chassis | ||
Trade name | Isuzu | manufacturer | Qingling Motors Co., Ltd. | ||
Number of axes | 2 | Number of tires | 6 | ||
Wheelbase (mm) | 3360 | ||||
Tire specifications | 7.00R16LT 14PR,7.00-16LT 14PR | ||||
Number of leaf spring | 8/6+5 | Front track (mm) | 1504 | ||
Fuel type | diesel fuel | Rear track (mm) | 1425 | ||
Emission standard | GB3847-2005, GB17691-2018 National Ⅵ | ||||
engine model | Engine manufacturer | engine capacity | Engine power | ||
4KH1CN6LB | Isuzu (China) Engine Co., Ltd. | 2999 | 88 | ||
