【Technical parameters of the vehicle】 | |||||

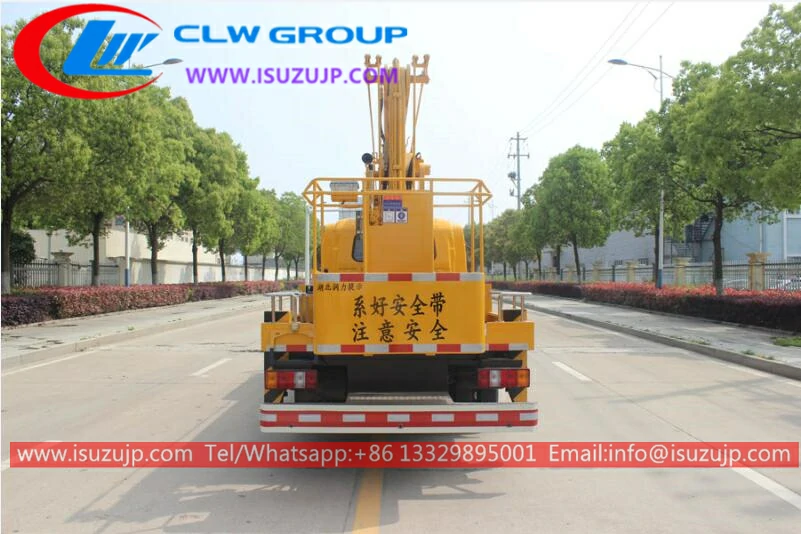

product name | SCS5065JGK18JX6 Isuzu double cabin 15 meter cherry picker Trinidad | ||||
Total mass(kg) | 5995 | Tank volume(m3) | |||
Rated mass(kg) | Dimensions(mm) | 8080X2080X3200 | |||
Curbweight (kg) | 5670,5605 | Cargo size(mm) | XX | ||
Number of occupants in the cab(person) | 2+3 | Maximum load of saddle(kg) | |||
Approach angle/Departure angle (°) | 20/10 | Front suspension/rear suspension(mm) | 1090/2180 | ||
Axle load(kg) | 2140/3855 | Maximum speed(km/h) | 100 | ||
Remark: | Remarks: The purpose of this car is to repair power, communication, street lights and other high-altitude operations . Themain device is the working arm. The cab is optional with the chassis. The length of the vehicle/front suspension The corresponding relationship between /wheelbase/rear overhang/ forward extension/rear extension is (mm) 7650/1090/3360/2180/900/1 20, 8080/1090/3360/2180/1120/330. Side, rear lower guard material: Q2 35B, side and rear lower protection connection method: welding connection, rear protection section size (width × height): 50 × 200 (mm), off the ground Height: 400mm. Hydraulic brake ABS system model/manufacturer: 3550A500/Zhejiang Asia Pacific Electromechanical Co., Ltd., A PG3550500A/Zhejiang Asia-Pacific Electromechanical Co., Ltd., air brake ABS system model/manufacturer: CM4XL-4S /4M/Guangzhou Ruili Kemi Automotive Electronics Co., Ltd. | ||||
【Chassis technical parameters】 | |||||
Chassis model | JXW1060CSJ2 | Chassis name | truck chassis | ||
brand name | Jiangxi Isuzu | manufacturer | Jiangxi Isuzu Motors Co., Ltd. | ||
number of axes | 2 | Number of tires | 6 | ||
Wheelbase(mm) | 3360 | ||||
Tire specifications | 7.00R16LT 14PR | ||||
Number of leaf springs | 2/2+1 | Front track(mm) | 1565 | ||
Fuel type | diesel fuel | Rear Track(mm) | 1508 | ||
Emissions according to standards | GB17691-2018 National VI | ||||
engine model | engine manufacturer | engine capacity | engine power | ||
4JJ1GJ JE493ZLQ6G | Jiangxi Isuzu Engine Co., Ltd. Jiangxi Isuzu Engine Co., Ltd. | 2999 2771 | 125 85 | ||
