[Technical parameters of the vehicle] | |||||

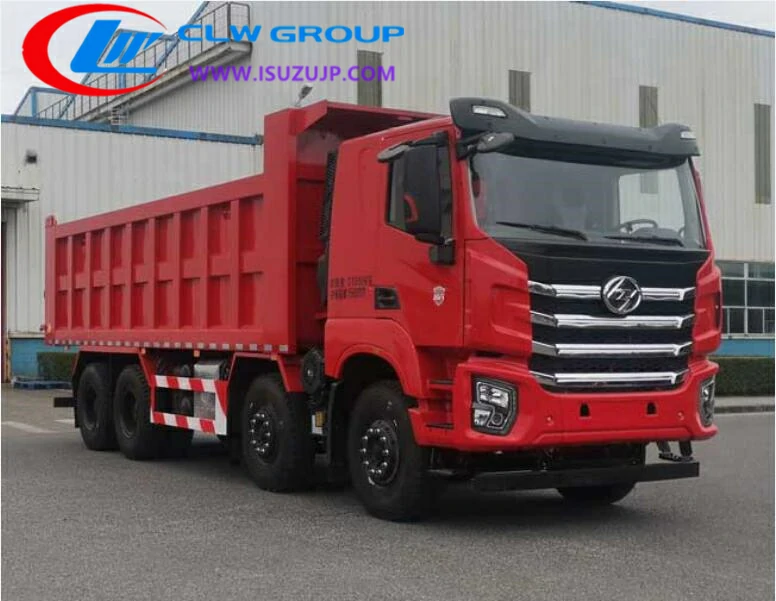

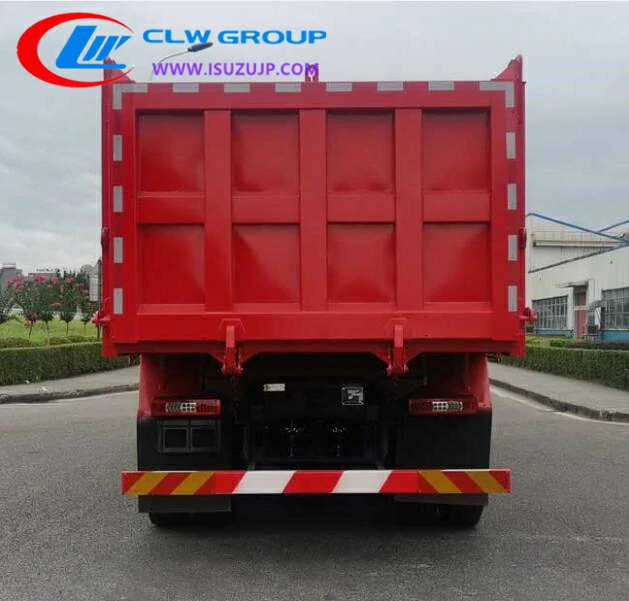

product name | CQ3317SD10336 mining haul truck | ||||
Total mass (kg) | 31000 | Tank volume (m3) | |||
Rated mass (kg) | 16770,15370 | Dimensions (mm) | 9610, 9710, 9810, 9910, 10110X2550X3460,3850 | ||
Curb weight (kg) | 14100,15500 | Cargo compartment size (mm) | 6400, 6500, 6600, 6800, 7000, 7200, 7400, 6700X2300, 2350X1200, 1500, 900, 1000, 1100, 1150, 1300, 1400 | ||
The number of passengers in the cab (person) | 2 | Maximum load of saddle (kg) | |||
Approach angle/departure angle (°) | 16/24,16/22,16/20,16/19,16/17 | Front suspension/rear suspension (mm) | 1460/1450,1460/1550,1460/1650,1460/1750,1460/1950 | ||
Axle load (kg) | 6500/6500/18000 (two-axis group) | Maximum speed (km/h) | 80 | ||
Remark: | Remarks: 1. ABS model: ABS/ASR-24V-4S/4M; CM4XL-4S/4M; ABS manufacturer : East Kekenuoer Commercial Vehicle Brake System (Shiyan) Co., Ltd.; Guangzhou Ruili Kemi Automotive Electronics Co., Ltd.; 2. Installed with Driving recorder with star positioning function; 3. Optional description: optional cab style with chassis, optional front and rear combination lights, optional rear-view mirror, optional multiple The appearance structure of a variety of cargo box panels, optional fuel tank specifications (350L, 400L), optional heat shield for post-processing, optional urea tank style, optional The style of the rear door of the cargo box, the font logo on the door panel of the cab is optional, and the ETC on-board device is optional for this model; 4. Engine/fuel consumption value (L/10 0km) The corresponding relationship is: Engine SC10E330Q6, SC10E370Q6, SC10E400Q6, S C10E420Q6 fuel consumption value is 40.8L/100km; 5.Material materials, connection methods and rear protective devices The main size parameters (section size and ground clearance): side protection material is Q345, side protection connection method: bolt connection; rear protection material The material is Q345, the rear protection connection method: bolt connection, the rear protection ground height is 490mm, and the cross-sectional size is 60×140mm ; 6. The self-unloading method is rear-unloading; 7. Other instructions: only use 2000+3300+140 with CQ3317SL6 chassis 0mm wheelbase; vehicle length (mm) / cab / cargo box length (mm) / rear overhang (mm) / departure angle (°) corresponding relationship is: 961 0/short drive/6600/1450/24;9810/short drive/6800/1650/20;9910/short drive/ 7000,7200/1750/19;10110/short drive/7400/1950/17;9710/long drive /6400,6700/1550/22;9810/long drive/6500,6800/1650/20;99 10/long drive/6800,7000/1750/19;10110/long drive/6800,7200/1950 /17;8. A manual locking mechanism is installed on the carriage fence | ||||
【Chassis technical parameters】 | |||||
Chassis model | CQ3317SL6 | Chassis name | Dump truck chassis | ||
Trade name | Hongyan | manufacturer | SAIC-IVECO Hongyan Commercial Vehicle Co., Ltd. | ||
Number of axes | 4 | Number of tires | 12 | ||
Wheelbase (mm) | 2000+2500+1400, 2000+3000+1400, 2000+3300+1400, 2000+2800+1400 | ||||
Tire specifications | 12R22.5 18PR, 315/80R22.5 18PR, 11.00R20 18PR, 12.00R20 18PR | ||||
Number of leaf spring | 3/3/4, 3/3/6, 8/8/6, 8/8/12, 9/9/12, 10/10/12, 3/3/5, 8/8/5, 12/ 12/14 | Front track (mm) | 2020/2020, 2040/2040, 2060/2060 | ||
Fuel type | diesel fuel | Rear track (mm) | 1858/1858,1870/1870 | ||
Emission standard | GB17691-2018 National Ⅵ | ||||
engine model | Engine manufacturer | engine capacity | Engine power | ||
SC10E370Q6 SC10E330Q6 SC10E420Q6 SC10E400Q6 F2CCE611G*M F2CCE611H*M F2CCE611J*M | Shanghai Diesel Engine Co., Ltd. Shanghai Diesel Engine Co., Ltd. Shanghai Diesel Engine Co., Ltd. Shanghai Diesel Engine Co., Ltd. SAIC Fiat Hongyan Powertrain Co., Ltd. SAIC Fiat Hongyan Powertrain Co., Ltd. SAIC Fiat Hongyan Powertrain Co., Ltd. | 10420 10420 10420 10420 8709 8709 8709 | 272 243 309 294 287 263 243 | ||
