【Technical parameters of the whole vehicle】 | |||||

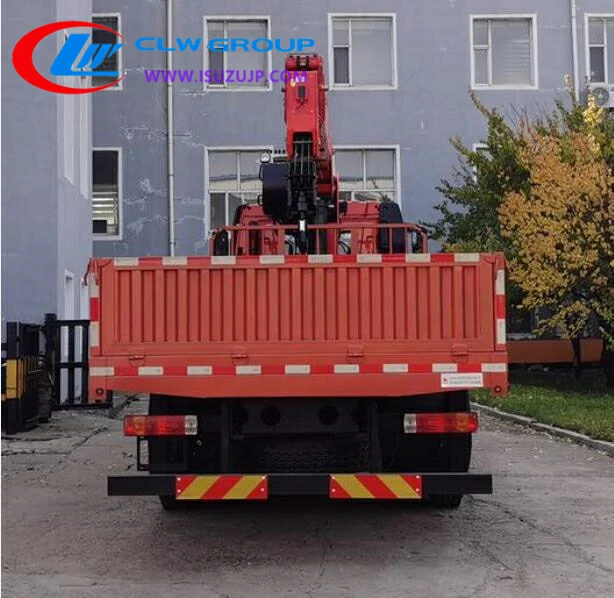

product name | CSL5250JSQE6 FAW boom truck 10 ton sale Burkina Faso | ||||
Total mass (kg) | 25000 | Tank volume (m3) | |||
Rated mass (kg) | 8670 | Dimensions (mm) | 12000X2550X3980 | ||
Curb weight (kg) | 17,500 | Cargo compartment size (mm) | 8350X2450X600,500 | ||
The number of passengers in the cab (person) | 2,3 | Maximum load of saddle (kg) | |||
Approach angle/departure angle (°) | 22/10 | Front suspension/rear suspension (mm) | 1400/3450 | ||
Axle load (kg) | 7000/18000 (two-axis group) | Maximum speed (km/h) | 89 | ||
Remark: | Remarks: ABS model: CM4XL; ABS manufacturer: Changchun Ruili Komi Automobile Electronics Co., Ltd.; install speed limit device; speed limit Device speed limit (km/h): 89; installed with a driving recorder with satellite positioning function; optional description: only use chassis CA6DK 1-32E6, CA6DK1-28E6 engine, only use 5800+1350mm wheelbase, optional cargo box fence structure , Optional control seat installation position, optional front wall and lamps with the chassis, optional wide-body bumper, foot pedal; optional cab style with the chassis, hair Motivation/fuel consumption value (L/100km) corresponding relationship is: CA6DK1-32E6/30.74, CA6DK1-2 8E6/30.74; The material used, connection method and main dimensional parameters of the rear protective device (section size and height from the ground) : The material of the side and rear lower protection device is Q235B, the side protection connection method is welding connection, and the rear lower protection connection method It is a welding connection. The cross-sectional size of the rear lower protective device is 120mm×90mm, and the height from the ground is 470mm; crane model: SPS25000; Crane weight (kg): 5300; Crane maximum lifting load (kg): 10000; optional Heavy machine model: S250, crane quality: 5000, crane maximum lifting load: 10000, optional crane model: SQ S250, crane quality: 5100, crane maximum lifting load: 10000, optional crane model: SQ10T, starting Heavy machine quality: 5300, crane maximum lifting load: 10000, special functions and devices: the special device of the crane truck is a truck-mounted crane , Used to realize the function of self-loading and unloading of goods; Other instructions: ETC on-board device is optional for this model; | ||||
【Chassis technical parameters】 | |||||
Chassis model | CA1250P62K1L3T1A1E6Z | Chassis name | Flat-head diesel truck chassis | ||
Brand name | Liberation card | manufacturer | China FAW Group Co., Ltd. | ||
Number of axes | 3 | Number of tires | 10 | ||
Wheelbase (mm) | 5800+1350 | ||||
Tire specifications | 11.00R20 | ||||
Number of leaf spring | 12/10 | Front track (mm) | 1928 | ||
Fuel type | diesel fuel | Rear track (mm) | 1878/1878 | ||
Emission standard | GB3847-2005, GB17691-2018 National Ⅵ | ||||
engine model | Engine manufacturer | engine capacity | Engine power | ||
CA6DK1-28E6 CA6DK1-26E6 CA6DH1-26E6 CA6DK1-32E6 CA6DH1-24E6 CA6DK1-32E61 CA6DK1-28E61 D6.7NS6B290 | China FAW Group Co., Ltd. China FAW Group Co., Ltd. China FAW Group Co., Ltd. China FAW Group Co., Ltd. China FAW Group Co., Ltd. China FAW Group Co., Ltd. China FAW Group Co., Ltd. Dongfeng Cummins Engine Co., Ltd. | 7146 7146 5700 7146 5700 7146 7146 6690 | 209 195 192 239 179 239 209 213 |
