- Chassis brand Dongfeng
- Origin of the product China, Hubei
- Delivery time around 15 working days
- Capacity for supply 1000 units in a year

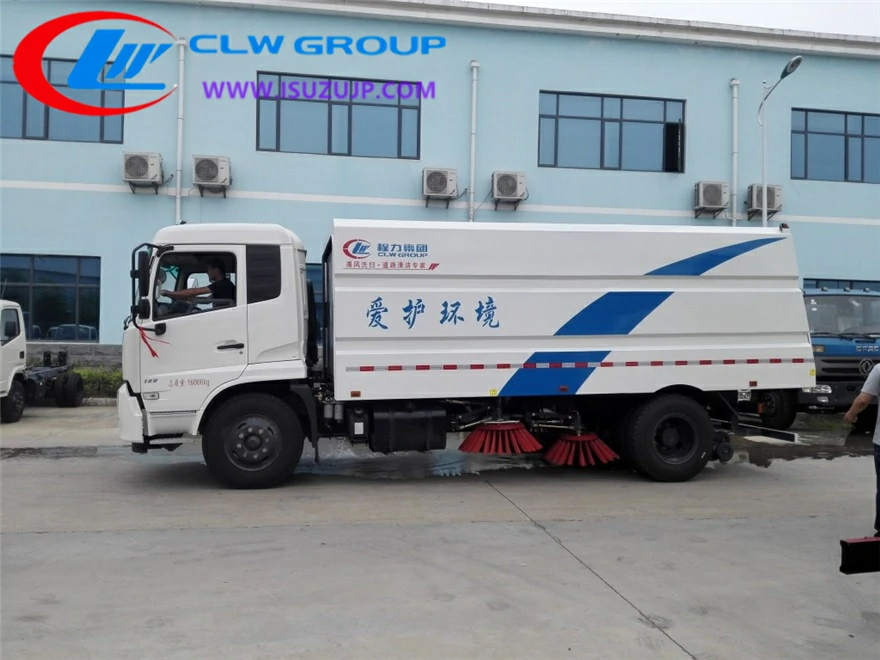

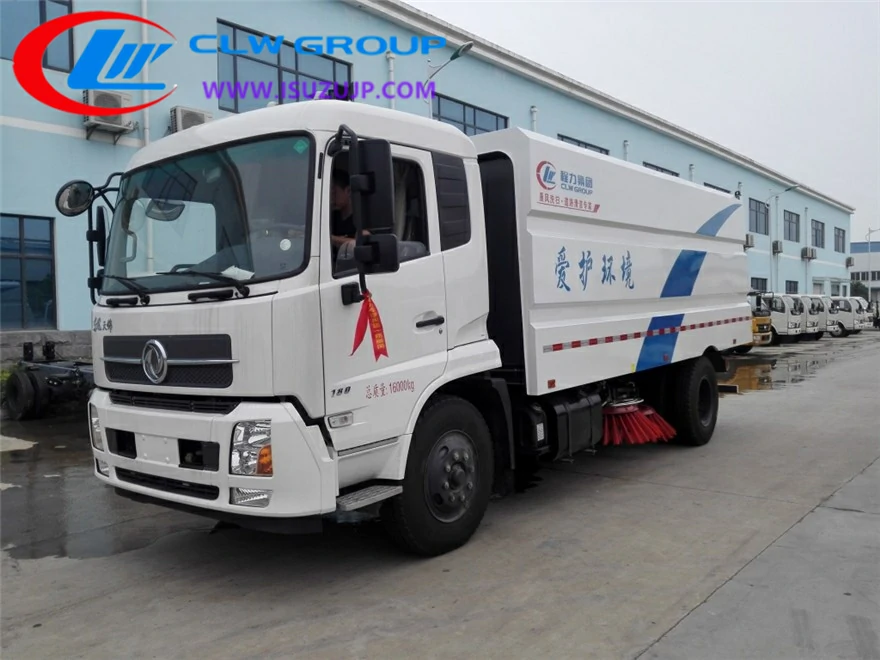

Dongfeng 8 Ton outdoor sweeper is used for all types of street cleaning operations, including those in urban streets, city squares, airport pavements, and urban residential areas.
Introduction and Application
Vacuum Road Sweeper is an innovative cleaning device that integrates road cleaning with garbage recycling and transportation. The mechanical sweeper brush is used to clean the roads.
Product feature
- Vacuum road sweeper works effortlessly and efficiently. All actions are completed by vacuum suction palte and mechanical sweeper brush
- The 8-ton vacuum road sweeper can be combined with the functions of cleaning, transporting, and sweeping the dirt, small stones, muds, leaves, and stains. It is practical and environmental protection.
- Dongfeng 8 Ton Vacuum Road Sweeper adopts China and International high-quality spare parts: auxiliary engines, pumps, valves, control system, etc.
Main Parameter
Name of the product | Dongfeng 8 Ton outdoor sweeper |
Types of driving | 4×2 |
Weight/Volume | |
Tank Volume(m 3 ) | 8m 3 (dust tank)+4m 3 (water tank) |
Rated payload weight (kg) | 8000 |
Dimensions | |
Wheelbase(mm) | 4700 |
Overall Dimension (mm) | 8995x2480x3350 |
Engine | |
Brand & Model of the engine | DONGFENG Cummins & B190 33 |
Type of engine | 4 stroke, water-cooled, straight line 6 cylinders,diesel |
Displacement(L)/Power(kw) | 5.9/140 |
Chassis | |
Quantity of Axles | 2 |
Type of Transmission | 6 forwards,1 reverse gear, manual |
Steering Type | LHD or RHD with power steering |
Brake system | Air brake |
Tire Spec. Size & Specification | 10.00R20 for 6 with a spare |
Cab | |
Standard configuration | Flatproof, single row radio, sound, and so forth |
Air conditioning | Do you have |
Performance parameter for DONGFENG 8 ton vacuum-road sweeper | |
Water tank | Body made of 4m3 stainless-steel |
Dust tank | 8m3 stainless-steel body |
Standard configuration | One vice diesel engine, 4 units sweeper brush, 1 piece sucker. Maintenance-free airflow. Hydraulic motor. Germany Schneider control switch. CVT self-separation clutch. Watering system. |
Parameter for working | 1. Cleaning efficiency> 95% |
2. 2.5m maximum width for suction sweep | |
3. Maximum particle size for inhalation: 80mm | |
4. Working speed: 3-20 km/h |
