At present, the demand for small sprinklers is very large in the market, because it is very convenient to enter and exit in small gardens, residential areas and other places;

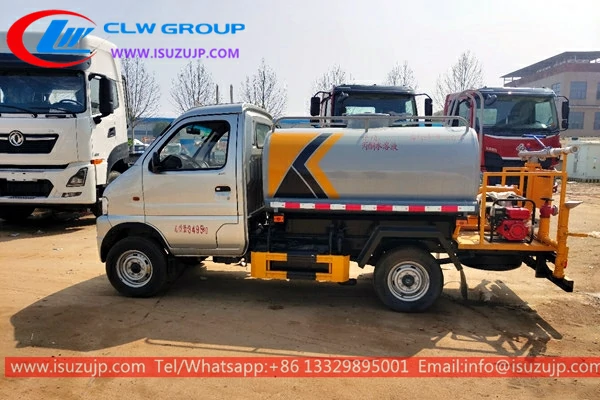

Spraying, watering, disinfection, spraying, etc. are all competent, such as this DFAC 2 ton small water tanker.
This car uses a 1.6-meter-wide cab from Dongfeng Xiaobawang, equipped with electronic steering assist, original air conditioning, original power take-off, front and rear drum brakes, and oil brakes as standard;
It is equipped with a 115-horsepower engine, a 5-speed gearbox, a 2700mm wheelbase, 185 tubeless tires and other sanitation chassis.
The vehicle is 4.65 meters long, 1.8 meters wide and 2.1 meters high, with a total mass of 3.495 tons, a curb weight of 1.7 tons, and a rated load of 1.665 tons;
The overall dimensions of the tank are 2 meters long, 1.35 meters wide, and 0.95 meters high. The effective volume of the tank is 2 cubic meters.
The tank body is made of carbon steel. The inside of the tank body has anti-wave plates made every 1.5 meters to prevent vibration. The manhole cover made on the top of the tank body is convenient for material feeding and later maintenance;

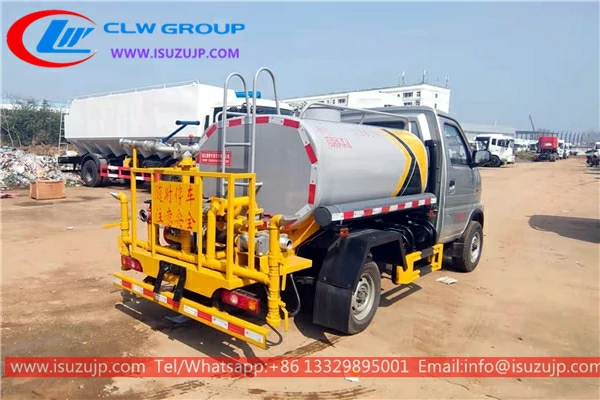

There are guardrails on both sides of the top of the tank, and a climbing ladder at the tail, which is convenient for the staff to go up and down.
The rear working platform is a punching platform, which is non-slip and beautiful. Installed in front of the car is an aluminum alloy three-bay front bumper, used to wash the road surface, the angle can be adjusted manually, and it can be sprayed about 28 meters;
Aluminum alloy water suction ball valve, water outlet ball valve, four-position three-way, fire interface, etc. are installed in the middle of the right side of the vehicle;
A large-diameter gravity valve is installed at the rear of the vehicle; warning lights are also installed to remind the driving safety;
The rear working platform is installed with a water pump on the platform, driven by a secondary engine, which can be self-priming and self-draining, sprinkling the antiaircraft cannon, the column can spray about 30 meters, and the mist can spray about 5 meters; the two sides are installed with side spray and After spraying, it can spray about 5 meters.
This DFAC 2 ton small water tanker can be used for green irrigation, spraying, road maintenance, spray dust suppression, antiaircraft gun spraying, etc. It has a wide range of applications and high work efficiency.
For small water trucks, the price is still very cost-effective, much cheaper than the Changan brand, the configuration is also good, the whole car is not overweight, you can consider starting!
