Recently, Chengli Special Purpose Vehicle Co., Ltd. has brought a refrigerated truck based on the Isuzu KV600 light truck chassis. In addition to meeting various indicators for frozen food transportation, this truck can also be legally installed with hydraulic tail plates. The above is relatively rare.
Carrier refrigerated unit with 19 cubic meters of cargo
In terms of appearance, this Isuzu KV600 refrigerated truck is almost indistinguishable from ordinary models except for the top.
The family-style wide-body cab is an important new product introduced by Qingling Isuzu in response to market demand in recent years. It can ride in three standard-sized adults and has plenty of space.
The top is developed and manufactured by Hubei Chengli Company. The size of the cargo box is 4030x2220x2200mm and the volume is about 19 cubic meters.
According to the “Safety Requirements and Test Methods for Road Transport, Food and Biological Products Refrigerated Trucks”, which is what we often call GB29753-2013, the truck belongs to the F category of refrigerated trucks, that is, the average temperature in the compartment is ≤-20°.
In addition, users who need it can also install hydraulic tailgates in the carriages to improve transportation efficiency and make up for the regret that Isuzu models do not have hydraulic tailgates.
Carrier refrigeration unit, model: CITIMAX 500, cooling capacity: 2.7kW-6.55kW. Non-independent refrigeration unit form, with automatic and manual defrosting system, the cab is equipped with an operating panel and a computer control system.
With the changes in market demand, lightweight has become one of the trends in the development of commercial vehicles today, and special vehicles are no exception.
It is understood that the actual car body adopts high-strength “positive pressure technology” and non-framework composite panels to ensure the strength while reducing the weight to a large extent; without a frame, it does not invade the interior space, which is in line with the current development trend.
For a refrigerated truck, a lightweight cargo compartment is obviously not enough. How to ensure that the cargo in the compartment is not deteriorated or damaged during transportation is the most important thing.

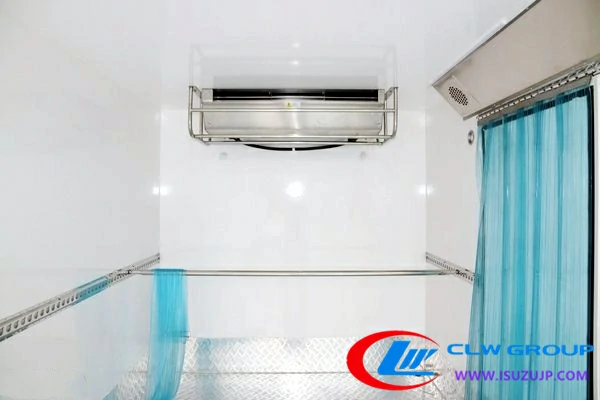

It is understood that the inner and outer skins of the refrigerated compartment are integral, and the doors and other positions are also sealed with multi-layer rubber strips, and the airtightness has exceeded the industry’s A-level indicators;
In terms of thermal insulation performance of Isuzu KV600 refrigerated truck, the glass fiber reinforced plastic panel itself has the characteristics of low thermal conductivity, coupled with the PVC cold bridge inside the car body, and relatively high-quality structural glue, the thermal insulation performance also exceeds the industry’s A-level Indicator level.
In addition, this new type of refrigerated carriage has many advantages, including good corrosion resistance, easy to repair small damages, and easy to post advertisements, etc., and it has gradually replaced traditional cold chain transportation carriages and has become the development trend of the industry. .
In addition, in order to facilitate the transportation of various types of goods, Chengli Company also provides: installation of side doors, clamping between different temperature zones, cargo fixing devices, cargo suspension devices, in-car racks, insulation curtains, aluminum guide rails, ventilation slots, etc. User selection and detailed configuration are very rich, which is helpful for product promotion.
ISUZU 4K engine 5-speed gearbox
Equipped with Isuzu 4KH1CN5HS, which is what we commonly call “4K”, 3.0L displacement, maximum power of 130 horsepower, peak torque of 290 Nm, and SCR post-processing technology to achieve Euro 5 emissions.
The cab is not much different from the ordinary KV600, only the central control panel of the cold machine and the air dryer button (manual defrost) in the lower left corner of the steering wheel are added.
The design of the center console is very neat, and the commonly used function buttons are located on both sides of the instrument, which has good practicability.
Since the beginning of the planned economy, Isuzu has won consumers’ favor with its fuel-efficient, durable and other product indicators. In recent years, the living standards of residents have improved, and Isuzu’s chassis has been chosen by many special-purpose vehicle brands.
