[Technical parameters of the vehicle] | |||||

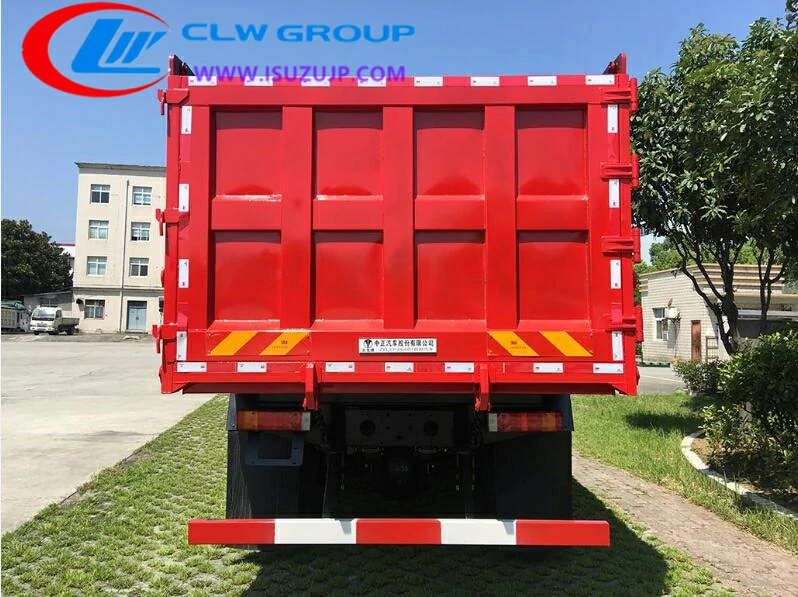

product name | ZYL3310G6D1 heavy duty dump truck | ||||
Total mass (kg) | 31000 | Tank volume (m3) | |||
Rated mass (kg) | 21005,20505,20105,21070,20570,20170 | Dimensions (mm) | 8490, 8690, 8890, 9090, 9390, 9690X2300, 2350, 2400, 2450, 2500, 2550X2700, 2800, 2950, 3000, 3050, 3100, 3250, 3450 | ||
Curb weight (kg) | 9800, 10300, 10700 | Cargo compartment size (mm) | 5600, 5800, 6000, 6200, 6500, 6800X2200, 2250, 2300, 2350, 2400X800, 850, 900, 950, 1000, 1100, 1200, 1300, 1400, 1500 | ||
The number of passengers in the cab (person) | 2,3 | Maximum load of saddle (kg) | |||
Approach angle/departure angle (°) | 16/18,16/16,16/14 | Front suspension/rear suspension (mm) | 1450/1540,1450/1740,1450/1940,1450/2040 | ||
Axle load (kg) | 6500/7000/17500 (two-axis group) | Maximum speed (km/h) | 89 | ||
Remark: | Remarks: The self-unloading method is rear-unloading, the side and rear structure of the box body are optional, the protective material is Q235, the side protection is connected by bolts, and the rear protection is adopted. Connected by welding; the rear protective ground height is 480mm, the cross-section size is 120mm×50mm, the engine YCS06270- 60 corresponds to a fuel consumption value of 40.6L/100km, ABS manufacturer; Guangzhou Xihe Automotive Electronic Equipment Co., Ltd., AB S model: XH-KQ4S4M-E01, with the chassis optional front panel, front lower bumper, front lamps, cab side structure, cover The sun plate is an optional part, and the third axle of the car is a liftable bridge, which can only be lifted under no-load conditions. The car is equipped with a driving recorder with satellite positioning function . This model is equipped with an ETC vehicle-mounted device with direct power supply. | ||||
【Chassis technical parameters】 | |||||
Chassis model | ZYL3310G6DJ | Chassis name | Dump truck chassis | ||
Trade name | Yanlong | manufacturer | Zhongzheng Automobile Co., Ltd. | ||
Number of axes | 4 | Number of tires | 10 | ||
Wheelbase (mm) | 1800+2400+1300,1800+2600+1300,1800+2900+1300,1800+3100+1300 | ||||
Tire specifications | 11.00R20 18PR,12R22.5,18PR | ||||
Number of leaf spring | 9/9/5/10+8,9/9/7/10+8,9/9/9/10+8,3/3/7/4+3,3/3/7/10+3, 8/8/7/10+8 | Front track (mm) | 1880/1880,1940/1940,1960/1960 | ||
Fuel type | diesel fuel | Rear track (mm) | 1765/1765,1850/1850,1800/1765 | ||
Emission standard | GB17691-2018 National Ⅵ | ||||
engine model | Engine manufacturer | engine capacity | Engine power | ||
YCS06270-60 | Guangxi Yuchai Machinery Co., Ltd. | 6234 | 199 | ||
