【Technical parameters of the vehicle】 | |||||

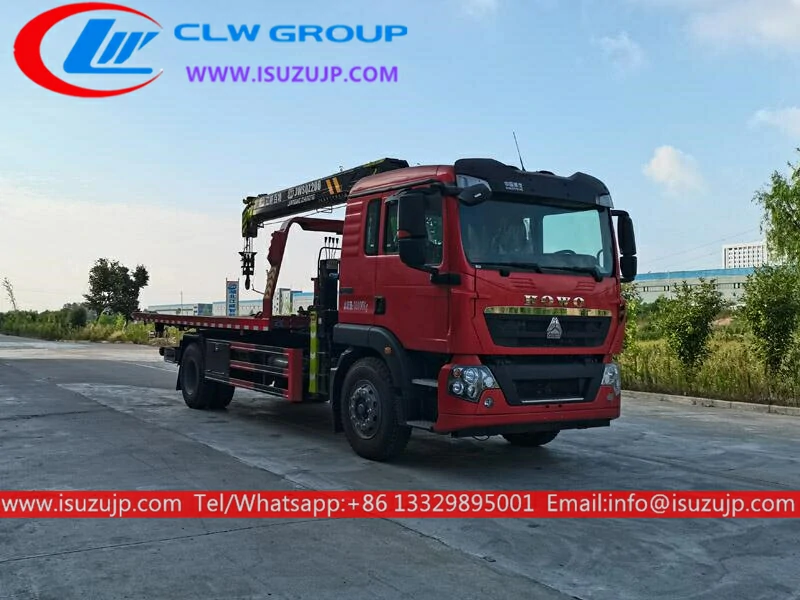

product name | JWD5180TQZZ6 towing crane | ||||
Total mass (kg) | 18000 | Tank volume (m3) | |||
Rated mass (kg) | 6370 | Dimensions (mm) | 9980X2500X3800 | ||
Curb weight (kg) | 11500, 12500, 13500 | Cargo size (mm) | xx | ||
Number of occupants in the cab (person) | 2,3 | Maximum load of saddle (kg) | |||
Approach angle/Departure angle (°) | 19/17, 19/19 | Front suspension/rear suspension(mm) | 1430/3220 | ||
Axle load(kg) | 6500/11500 | Maximum speed (km/h) | 89,101 | ||
Remark: | Remarks: 1. When the curb weight is 11500kg, the lifting weight is 6370kg (2 persons) and 6305kg (3 persons); When the curb weight is 12500kg, the lifting mass is 5370kg (2 persons) and 5305kg (3 persons); when curb weight When the mass is 13500kg, the lifting mass is 4370kg (2 persons), 4305kg (3 persons); Maximum lifting load (kg)/hoist weight (kg) are: JWSQZ200: 6000/2500; vehicle length/wheelbase /The corresponding relationship of rear overhang (mm) is::9650/5000/3220,9980/5200/3350; the car It is mainly used for road vehicles to clear obstacles. The main devices of the car are lift plates and winches, which are used to clear road obstacles. 2. The side and rear protective materials are all Q2 35. The side protection is welded and connected, the rear protection is replaced by a special device, and the lower edge is 450mm above the ground. 3, ABS system controller production The enterprise/model is WABCO (Shanghai) Management Co., Ltd.; 4, ABS system controller manufacturer/model is WABCO (Shanghai) management Co., Ltd./4460046300.5, optional speed limiter, the maximum speed (km/h) is 89; choose 5000,5 200mm wheelbase. Optional jib crane, crane model / maximum lifting load (kg) / crane weight (kg) are: SQ 240/6000/2500. | ||||
【Chassis technical parameters】 | |||||
Chassis model | ZZ1187K501GF1 | Chassis name | truck chassis | ||
brand name | Howo | manufacturer | Sinotruk Jinan Truck Co., Ltd. | ||
number of axes | 2 | Number of tires | 6 | ||
Wheelbase(mm) | 5200 | ||||
Tire specifications | 295/80R22.5 18PR | ||||
Number of leaf springs | 11/9+8 | Front track(mm) | 1950 | ||
Fuel type | diesel fuel | Rear Track(mm) | 1848 | ||
Emissions according to standards | GB17691-2018 National VI | ||||
engine model | engine manufacturer | engine capacity | engine power | ||
MC07.25-60 WP4.6NQ220E61 | China National Heavy Duty Truck Group Co., Ltd. Weichai Power Co., Ltd. | 6870 4580 | 188 162 | ||
