[Technical parameters of the vehicle] | |||||

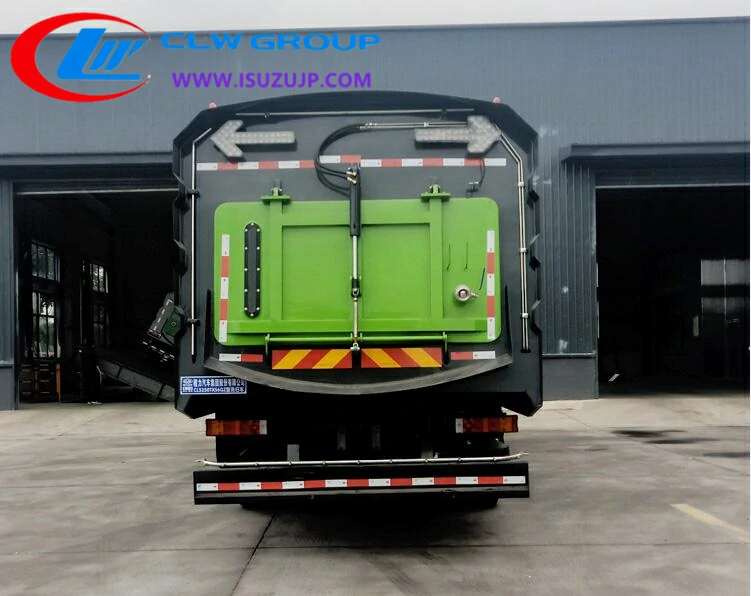

product name | CL5250TXS6QZ road sweeper | ||||
Total mass (kg) | 25000 | Tank volume (m3) | |||
Rated mass (kg) | 10540,10475 | Dimensions (mm) | 10200X2520X3300 | ||
Curb weight (kg) | 14,330 | Cargo compartment size (mm) | XX | ||
The number of passengers in the cab (person) | 2,3 | Maximum load of saddle (kg) | |||
Approach angle/departure angle (°) | 20/9 | Front suspension/rear suspension (mm) | 1500/3000,1480/3020 | ||
Axle load (kg) | 7000/18000 (two-axis group) | Maximum speed (km/h) | 89 | ||
Remark: | Remarks: Only (mm) 4350+1350 wheelbase is used for modification. The main special devices include box body, diesel unit, cleaning device, etc., purpose road Surface cleaning and garbage collection; ABS model/manufacturer: 3631010-C2000/East Koknorr Commercial Vehicle Brake System ( Shiyan) Co., Ltd., ABS 8/East Kokenuoer Commercial Vehicle Braking System (Shiyan) Co., Ltd., 4460046450/Wei Burke Automotive Control System (China) Co., Ltd. The side protection device is replaced by a special device. The rear lower protection device is made of Q235 material, The connection method is welding connection; the section size of the rear lower protective device (width×height) (mm): 50×250, the height from the ground: 450m m. With the optional chassis cab. | ||||
【Chassis technical parameters】 | |||||
Chassis model | DFH1250D4 | Chassis name | Truck chassis | ||
Trade name | Dongfeng | manufacturer | Dongfeng Commercial Vehicle Co., Ltd. | ||
Number of axes | 3 | Number of tires | 10 | ||
Wheelbase (mm) | 4350+1350 | ||||
Tire specifications | 295/80R22.5 18PR | ||||
Number of leaf spring | 3/10, 3/4, 9/10 | Front track (mm) | 2010 | ||
Fuel type | diesel fuel | Rear track (mm) | 1860/1860 | ||
Emission standard | GB3847-2005, GB17691-2018 National Ⅵ | ||||
engine model | Engine manufacturer | engine capacity | Engine power | ||
D6.7NS6B290 | Dongfeng Cummins Engine Co., Ltd. | 6700 | 213 | ||
