[Technical parameters of the vehicle] | |||||

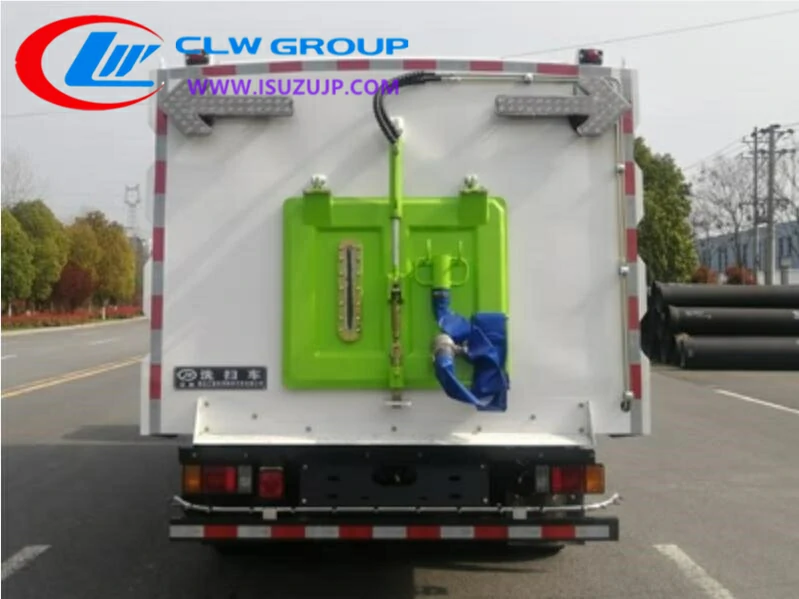

product name | JDF5110TXSQ6 sweeping machine | ||||
Total mass (kg) | 10550 | Tank volume (m3) | |||
Rated mass (kg) | 2475 | Dimensions (mm) | 7600X2200X2750 | ||
Curb weight (kg) | 7880 | Cargo compartment size (mm) | XX | ||
The number of passengers in the cab (person) | 3 | Maximum load of saddle (kg) | |||
Approach angle/departure angle (°) | 19/15 | Front suspension/rear suspension (mm) | 1110/2015 | ||
Axle load (kg) | 3500/7050 | Maximum speed (km/h) | 110 | ||
Remark: | Remarks: The cab is optional with the chassis; the side protection device interferes with the special operating device and cannot be installed; the material of the rear lower protection device: Q235 , Connection method: welding and bolt connection; the cross-sectional size of the rear lower protective device (width × height): 50 × 100 (mm), the height from the ground: 460mm; ABS and controller model: APG3550500H1, manufacturer: Zhejiang Asia-Pacific Mechanical and Electrical Co., Ltd. Division; The main dedicated device is the box body and the cleaning device, which is used for road cleaning operations. | ||||
【Chassis technical parameters】 | |||||
Chassis model | QL1110ANMACY | Chassis name | Truck chassis | ||
Trade name | Isuzu | manufacturer | Qingling Motors Co., Ltd. | ||
Number of axes | 2 | Number of tires | 6 | ||
Wheelbase (mm) | 4475 | ||||
Tire specifications | 235/75R17.5 16PR, 8.25R20 14PR | ||||
Number of leaf spring | 8/10+6 | Front track (mm) | 1680 | ||
Fuel type | diesel fuel | Rear track (mm) | 1650 | ||
Emission standard | GB17691-2018 National Ⅵ | ||||
engine model | Engine manufacturer | engine capacity | Engine power | ||
4HK1-TCG61 4HK1-TCG60 | Isuzu (China) Engine Co., Ltd. Isuzu (China) Engine Co., Ltd. | 5193 5193 | 139 151 | ||
