[Technical parameters of the vehicle] | |||||

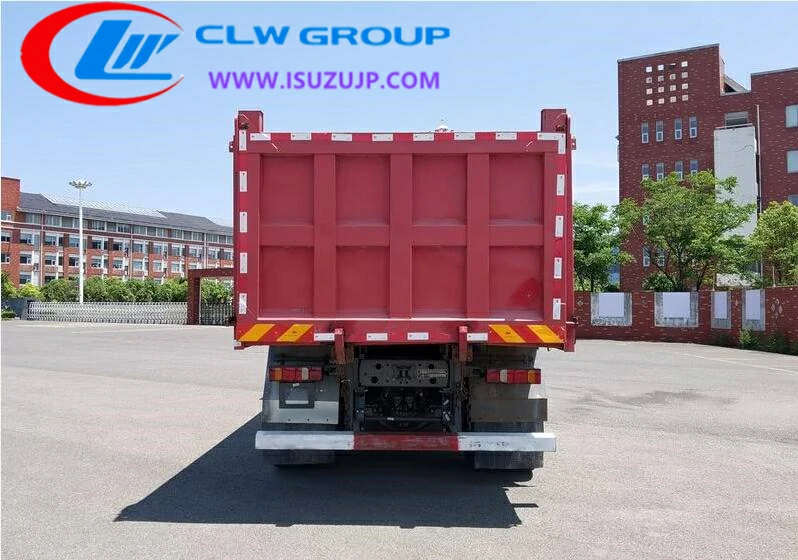

product name | ZZ3316V486HZ1FCEVH SITRAK dumper price | ||||
Total mass (kg) | 31000 | Tank volume (m3) | |||
Rated mass (kg) | 6570 | Dimensions (mm) | 11647X2550X3990 | ||
Curb weight (kg) | 24300 | Cargo compartment size (mm) | 7000X2350X1000,1100,1200,1300,1400,1500 | ||
The number of passengers in the cab (person) | 2 | Maximum load of saddle (kg) | |||
Approach angle/departure angle (°) | 19/19 | Front suspension/rear suspension (mm) | 1492/2030 | ||
Axle load (kg) | 6500/7000/17500 (two-axis group) | Maximum speed (km/h) | 89 | ||
Remark: | Remarks: This product is a new energy vehicle, the type is fuel cell. Fuel cell type: proton exchange membrane fuel cell; fuel cell manufacturer: Wei Diesel Power Co., Ltd. Type of energy storage device/manufacturer: lithium manganate battery/Tianjin Rongsheng Mengguli New Energy Technology Co., Ltd. drive The motor model is TZ388XSWDM2804, the manufacturer is Weichai New Energy Technology Co., Ltd., and the rated power is 250k W, the peak power is 360kW. The self-unloading method of the cargo compartment is rear unloading. The material of the side guard is Q235B, and the connection method is Bolt connection; the material of the rear guard is Q235B, the connection method is bolt connection, and the cross-sectional size is 120mm×12 0mm, the height from the ground is 490mm. The ABS system model is 4460046300, and the manufacturer is ZF Commercial Vehicle System (Qingdao) Co., Ltd. Install a driving recorder with satellite positioning function. This model can be equipped with an ETC on-board device as an option. | ||||
【Chassis technical parameters】 | |||||
Chassis model | ZZ3316V486HZ1FCEV | Chassis name | Fuel cell dump truck chassis | ||
Trade name | SITRAK | manufacturer | China National Heavy Duty Truck Group Jinan Commercial Vehicle Co., Ltd. | ||
Number of axes | 4 | Number of tires | 12 | ||
Wheelbase (mm) | 1950+4825+1350 | ||||
Tire specifications | 12.00R20 18PR | ||||
Number of leaf spring | 11/11/12 | Front track (mm) | 2022/2022,2041/2041 | ||
Fuel type | hydrogen | Rear track (mm) | 1860/1860 | ||
Emission standard | |||||
engine model | Engine manufacturer | engine capacity | Engine power | ||
TZ388XSWDM2804 | Weichai New Energy Technology Co., Ltd. | 360 | |||
