[Technical parameters of the vehicle] | |||||

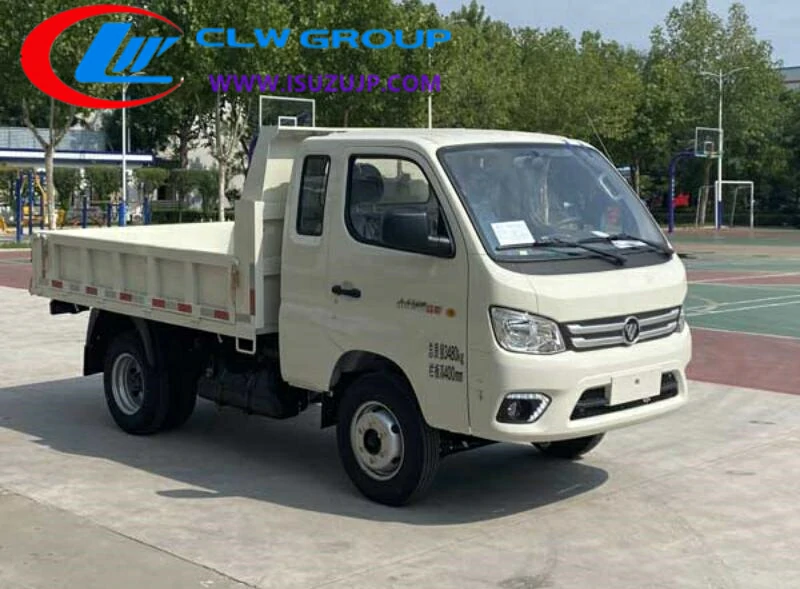

product name | BJ3032D4PV4-02 Forland mini dumper price | ||||
Total mass (kg) | 3480 | Tank volume (m3) | |||
Rated mass (kg) | 1340 | Dimensions (mm) | 4728, 4978X1820,1850X1995 | ||
Curb weight (kg) | 2010 | Cargo compartment size (mm) | 2600,2850X1700X360,400 | ||
The number of passengers in the cab (person) | 2 | Maximum load of saddle (kg) | |||
Approach angle/departure angle (°) | 22/19 | Front suspension/rear suspension (mm) | 1075/1203 | ||
Axle load (kg) | 1100/2380 | Maximum speed (km/h) | 100 | ||
Remark: | Remarks: Rear unloading. Optional front fog lamp without daytime running lamp shape, optional front fog lamp without daytime running lamp shape. Optional black decorative strip, optional Installed without black decorative strips. Optional rear-view mirror style. Optional cargo compartment style. Engine DAM16KL corresponds to a fuel consumption value of 10.1L/ 100km. The ABS model is CM4YL, and the ABS manufacturer is Guangzhou Ruili Komi Automotive Electronics Co., Ltd. This model is available Optional ETC in-vehicle device. | ||||
【Chassis technical parameters】 | |||||
Chassis model | BJ3032D4PV4-02 | Chassis name | Dump truck chassis | ||
Trade name | Futian | manufacturer | Beiqi Foton Motor Co., Ltd. | ||
Number of axes | 2 | Number of tires | 6 | ||
Wheelbase (mm) | 2450,2700 | ||||
Tire specifications | 185R15LT 6PR,6.00R15LT 10PR | ||||
Number of leaf spring | 3/5+2 | Front track (mm) | 1412,1432 | ||
Fuel type | gasoline | Rear track (mm) | 1320 | ||
Emission standard | GB18352.6-2016 National Ⅵ | ||||
engine model | Engine manufacturer | engine capacity | Engine power | ||
DAM16KL | Harbin Dongan Automobile Power Co., Ltd. | 1597 | 90 | ||
