- Chassis brand (Qingling) Isuzu
- Origin of the product China, Hubei
- Delivery time around 7 working days
- Capacity for supply One year, 5,000 units

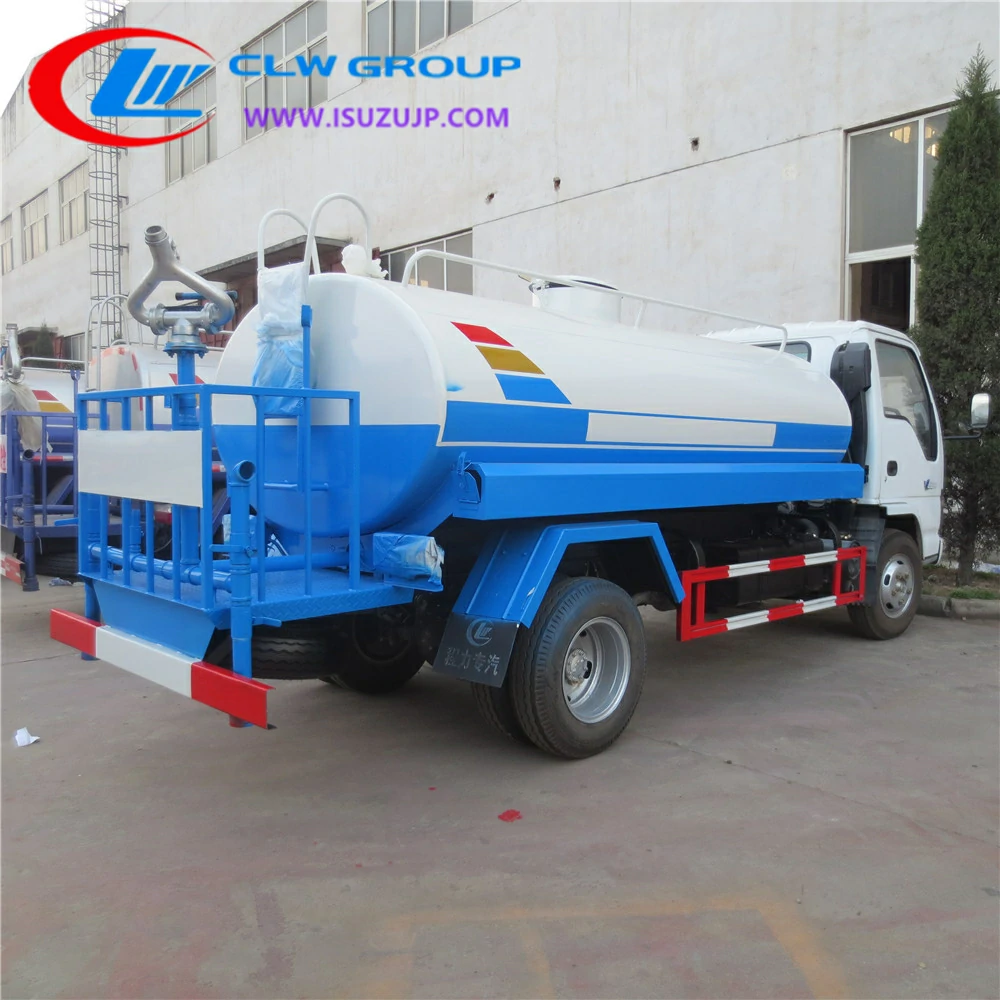

ISUZU 5000L Water Wagon Truck can be used for water transportation, irrigation, fire fighting, and other purposes. Sprinkler width >=20m, maximum water reaches >=28m; can either be converted into a column or mist.
Introduction and Application
Water wagon truck can also be called water tanker, water truck, water sprinkler, or water tanker. It is used primarily to spray pesticides in the countryside, cities, large-scale factories, troops, and gardens.
Product Feature
- Adopt SinoJapanese joint venture [QINGLING ISSUZU] cargo chassis
- Equip with a top-brand water pump, an aluminum alloy or stainless metal ball valve, and a pipeline
- China’s top-quality professional CLW factory produces high quality water tanks bodies
- Produced on an automatic assembly line or automatic painting line
Main parameter
Name of the product | ISUZU 5000L Water Wagon Truck Guinea-Bissau | |
Cab | Isuzu single-row cab with two doors, rated passengers 2, or 3. | |
Chassis | Brand | (Qingling) Isuzu |
Type of car | 4×2, LHD | |
Tire | 7.00R16 | |
Tire No. | 6+1 (spare). | |
Braking System | Hydraulic brake | |
Transmission | Isuzu MSB 5 forward gear,1 reverse, manual mechanical type | |
Engine | Brand | Isuzu |
Standard for emission | Euro 5/4 | |
Dimension and weight | Overall dimension (L*W*H/mm) | 5995*2430*2950 |
Axles No. | 2 | |
GVW (kg) | 8000 | |
Curb Weight (kg) | 3850 | |
Maximum speed (km/h). | 90 | |
Performance parameter | Tank material | 4mm stainless steel or carbon steel |
Standard configuration | High quality water pump (suction lift>6m), fire interfacing, gravity valve and filter gauze. Rear working platform with water gun, water cannon, and two 3m-long water pipes. | |
Performance data | Sprinkling width:6-12m; water cannon range>28m | |
Principal function | Watering, carrying water and drought fighting |
