[Technical parameters of the vehicle] | |||||

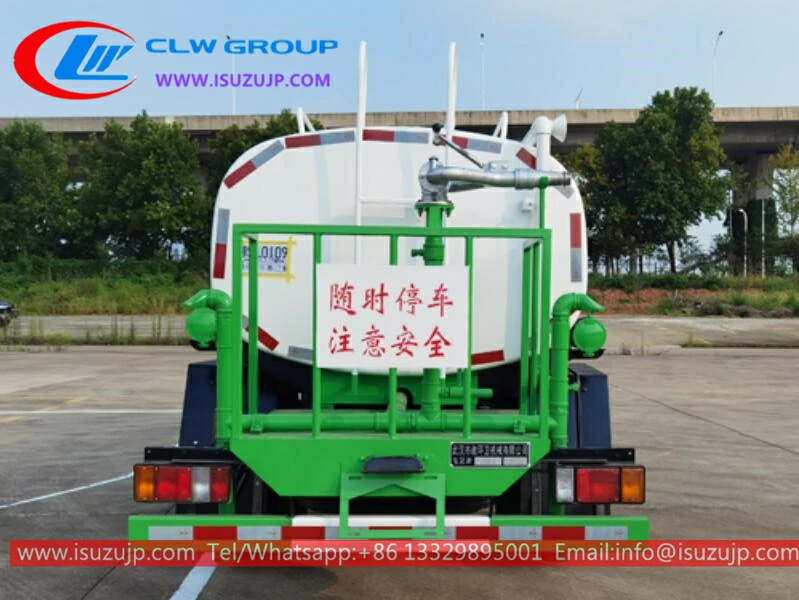

product name | WZJ5071GSSE6 potable water truck for sale | ||||
Total mass (kg) | 7300 | Tank volume (m3) | 4 | ||
Rated mass (kg) | 3960 | Dimensions (mm) | 5998X2000X2380 | ||
Curb weight (kg) | 3210 | Cargo compartment size (mm) | XX | ||
The number of passengers in the cab (person) | 2 | Maximum load of saddle (kg) | |||
Approach angle/departure angle (°) | 24/11 | Front suspension/rear suspension (mm) | 1015/1623 | ||
Axle load (kg) | 2580/4720 | Maximum speed (km/h) | 95 | ||
Remark: | Remarks: The car is equipped with water pumps and nozzles to make the water flow have a certain pressure. It is used for spraying the road surface, and is a tank-type special-purpose vehicle for dust removal and cooling. ; The effective volume of the tank is: 4.15 cubic meters, the overall dimensions of the tank (long × long axis × short axis) (mm): 3360 × 1650 × 1100, the medium is water, density: 1000 kg/m3; the materials used for side protection and rear protection are Q235A, side protection Both the rear guard and the rear guard are fixed by bolts to the vehicle. The rear guard section size is: 120mm×50mm, and the ground clearance is 390m m; The wheelbase is only 3360mm; the chassis is equipped with an optional brake system. When a hydraulic brake system is installed, ABS and its controller model/manufacturer The corresponding relationship is: APG3550500A/Zhejiang Asia-Pacific Mechanical and Electrical Co., Ltd., CM4YL/Guangzhou Ruili Komi Automotive Electronics Co., Ltd.; when the air brake system is installed, the corresponding relationship between ABS and its controller model/manufacturer is: CM4XL-4S/4 M/Guangzhou Ruili Komi Automotive Electronics Co., Ltd.; this model can be equipped with a direct-powered ETC vehicle-mounted device; choose one type with the chassis and only change The cab with front panel, front grille, front combination lamps, optional front sign 4K ENGING/NJR/NHR/NKR/ 100P, optional plastic foot pedal. | ||||
【Chassis technical parameters】 | |||||
Chassis model | QL1070BUHACY | Chassis name | Truck chassis | ||
Trade name | Isuzu | manufacturer | Qingling Motors Co., Ltd. | ||
Number of axes | 2 | Number of tires | 6 | ||
Wheelbase (mm) | 3360 | ||||
Tire specifications | 7.00R16LT 14PR,7.00-16LT 14PR | ||||
Number of leaf spring | 8/6+5 | Front track (mm) | 1504 | ||
Fuel type | diesel fuel | Rear track (mm) | 1425 | ||
Emission standard | GB3847-2005, GB17691-2018 National Ⅵ | ||||
engine model | Engine manufacturer | engine capacity | Engine power | ||
4KH1CN6LB | Isuzu (China) Engine Co., Ltd. | 2999 | 88 |
