【Technical parameters of the whole vehicle】 | |||||

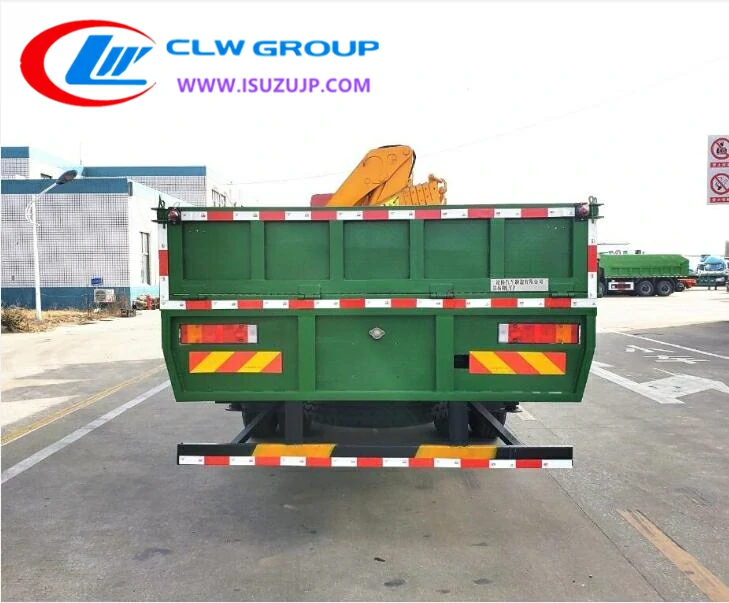

product name | LYP5250JSQ 6×2 Chenglong lorry crane 10 ton price Somalia | ||||
Total mass (kg) | 25000 | Tank volume (m3) | |||
Rated mass (kg) | 8070 | Dimensions (mm) | 12000X2550X3850 | ||
Curb weight (kg) | 16,800 | Cargo compartment size (mm) | 8000X2450X500 | ||
The number of passengers in the cab (person) | 2 | Maximum load of saddle (kg) | |||
Approach angle/departure angle (°) | 20/10 | Front suspension/rear suspension (mm) | 1445/3155 | ||
Axle load (kg) | 6750/6750/11500 | Maximum speed (km/h) | 90 | ||
Remark: | Remarks: 1. This model has been installed with side and rear reflective markings. 2. The crane model is LY330, and the maximum lifting load is 10000K g, the crane mass is 5000Kg. 3. The protective materials are all Q235, the protection is all welded, and the section size of the rear protective device It is 120 mm × 50 mm, and the ground height is 500 mm. 4. The car is equipped with a driving recorder with satellite positioning function, ABS Model/Enterprise: ABS-E 4S/4M/Wabco Automotive Control Systems (China) Co., Ltd., CM4XL-4S/4 M/Guangzhou Ruili Komi Automotive Electronics Co., Ltd. Optional direct charging ETC. Optional cab with chassis and optional fence structure. | ||||
【Chassis technical parameters】 | |||||
Chassis model | LZ1250H5CCT | Chassis name | Truck chassis | ||
Brand name | Chenglong | manufacturer | Dongfeng Liuzhou Automobile Co., Ltd. | ||
Number of axes | 3 | Number of tires | 8 | ||
Wheelbase (mm) | 2050+5350 | ||||
Tire specifications | 11.00R20 18PR | ||||
Number of leaf spring | 10/10/12+9 | Front track (mm) | 2040/2040 | ||
Fuel type | diesel fuel | Rear track (mm) | 1860 | ||
Emission standard | GB3847-2005, GB17691-2018 National Ⅵ | ||||
engine model | Engine manufacturer | engine capacity | Engine power | ||
YCS06245-60A YCS06270-60 | Guangxi Yuchai Machinery Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. | 6234 6234 | 180 199 | ||
