【Technical parameters of the whole vehicle】 | |||||

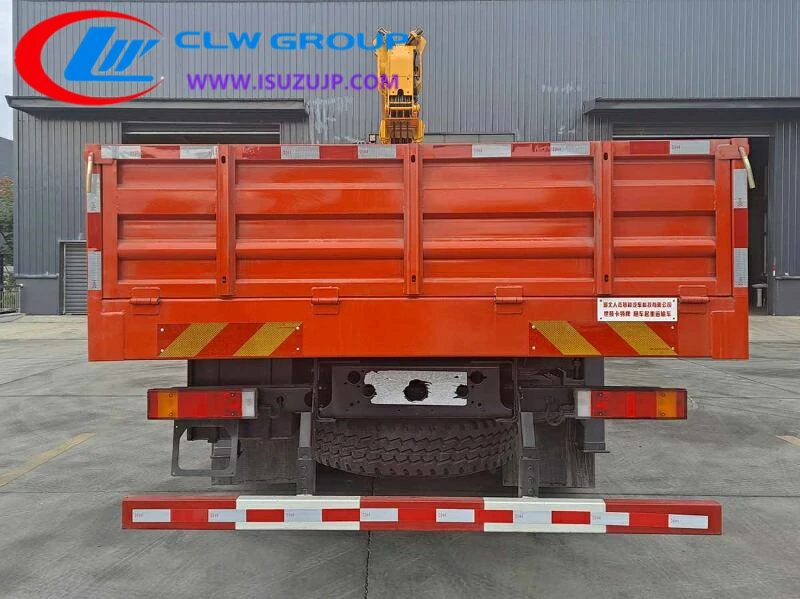

product name | XCL5316JSQ6 14000kg cargo crane truck Niger | ||||
Total mass (kg) | 31000 | Tank volume (m3) | |||
Rated mass (kg) | 11105 | Dimensions (mm) | 12000X2500X3990 | ||
Curb weight (kg) | 19700 | Cargo compartment size (mm) | 8500X2450X600 | ||
The number of passengers in the cab (person) | 2,3 | Maximum load of saddle (kg) | |||
Approach angle/departure angle (°) | 21/10 | Front suspension/rear suspension (mm) | 1500/2700 | ||
Axle load (kg) | 6500/6500/18000 (two-axis group) | Maximum speed (km/h) | 89 | ||
Remark: | Remarks: ABS model: 3631010-C2000; ABS manufacturer: East Kekenuoer Commercial Vehicle Braking System (Shiyan) Co., Ltd.; installed with a driving recorder with satellite positioning function; engine net power value: L9NS6B360 engine net power: 264kW; engine/fuel consumption value (L/100km) corresponding relationship is: L9NS6B360 (37.1); side rear defense Protection situation: side protection: material Q235, welding connection. Rear bottom protection: material Q235A, welding connection, section size 120×6 0mm, height above the ground 460mm; crane model: SQS350; crane mass (kg): 5160; crane maximum Lifting load (kg): 14000; other instructions: optional on-board ETC device; optional different top styles | ||||
【Chassis technical parameters】 | |||||
Chassis model | DFH1310A15 | Chassis name | Truck chassis | ||
Brand name | Dongfeng | manufacturer | Dongfeng Commercial Vehicle Co., Ltd. | ||
Number of axes | 4 | Number of tires | 12 | ||
Wheelbase (mm) | 2050+4400+1350 | ||||
Tire specifications | 11.00R20 18PR | ||||
Number of leaf spring | 8/8/10 | Front track (mm) | 2010/2010 | ||
Fuel type | diesel fuel | Rear track (mm) | 1860/1860 | ||
Emission standard | GB17691-2018 National Ⅵ | ||||
engine model | Engine manufacturer | engine capacity | Engine power | ||
L9NS6B360 L9NS6B400 | Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. | 8900 8900 | 265 294 |
