【Technical parameters of the whole vehicle】 | |||||

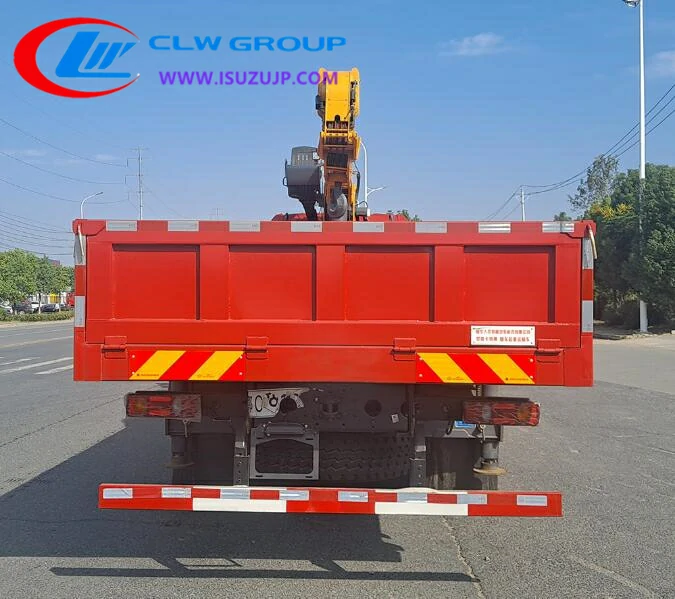

product name | XCL5243JSQ6 10000kg truck mounted hydraulic crane Morocco | ||||
Total mass (kg) | 24490 | Tank volume (m3) | |||
Rated mass (kg) | 8060 | Dimensions (mm) | 12000X2550X3950 | ||
Curb weight (kg) | 16,300 | Cargo compartment size (mm) | 8500X2450X550 | ||
The number of passengers in the cab (person) | 2,3 | Maximum load of saddle (kg) | |||
Approach angle/departure angle (°) | 23/13 | Front suspension/rear suspension (mm) | 1440/3350 | ||
Axle load (kg) | 6490/18000 (two-axis group) | Maximum speed (km/h) | 89 | ||
Remark: | Remarks: 1. Cab is optional with the chassis; 2. Crane model/weight of crane (kg)/maximum lifting load (kg): STR250 /5300(kg)/10000(kg); 3. Only use chassis 4750+1350mm and 5900+135 0mm wheelbase, vehicle length/wheelbase/rear suspension correspondence: 10890/4750+1350/3350, 12000/ 5900+1350/3310; 4. Side protection: material Q235, welded connection; rear lower protection: material Q235A, Bolt connection, section size 120×60mm, ground height 490mm; 5. Engine D6.7NS6B320, D6 .7NS6B260,D6.7NS6B230,B6.2NS6B260,B6.2NS6B230,Y CS06270-60, YCS06245-60, YCS06245-60A, YCS06220-60 The corresponding fuel consumption value is 30.5L/100km; 6. This model can be optionally equipped with a direct power supply ETC vehicle device.; 7. This vehicle is installed Driving recorder with satellite positioning function; 8. Special functions and devices for this vehicle: cargo box and crane, which are mainly used for lifting and consigning goods; 9. , ABS model/manufacturer: 3631010-C2000/East Kokenuoer Commercial Vehicle Brake System (Shiyan) Co., Ltd.
| ||||
【Chassis technical parameters】 | |||||
Chassis model | DFV1243GP6DJ | Chassis name | Truck chassis | ||
Brand name | Dongfeng | manufacturer | Dongfeng Commercial Vehicle Xinjiang Co., Ltd. | ||
Number of axes | 3 | Number of tires | 10 | ||
Wheelbase (mm) | 5900+1350 | ||||
Tire specifications | 10.00-20 18PR | ||||
Number of leaf spring | 9/10 | Front track (mm) | 1940 | ||
Fuel type | diesel fuel | Rear track (mm) | 1860/1860 | ||
Emission standard | GB17691-2018 National Ⅵ | ||||
engine model | Engine manufacturer | engine capacity | Engine power | ||
D6.7NS6B230 YCS06270-60 B6.2NS6B230 YCS06245-60A B6.2NS6B260 YCS06245-60 D6.7NS6B260 D6.7NS6B320 YCS06220-60 YCS06220-60 | Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. | 6700 6234 6200 6234 6200 6234 6700 6700 6234 6234 | 169 199 169 180 191 180 191 231 162 162 | ||
